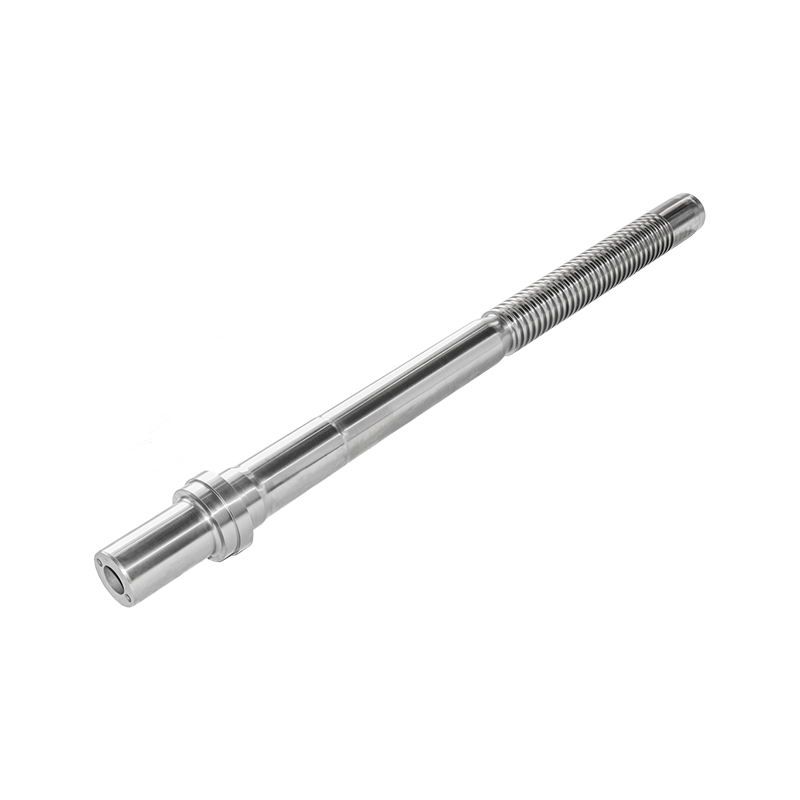

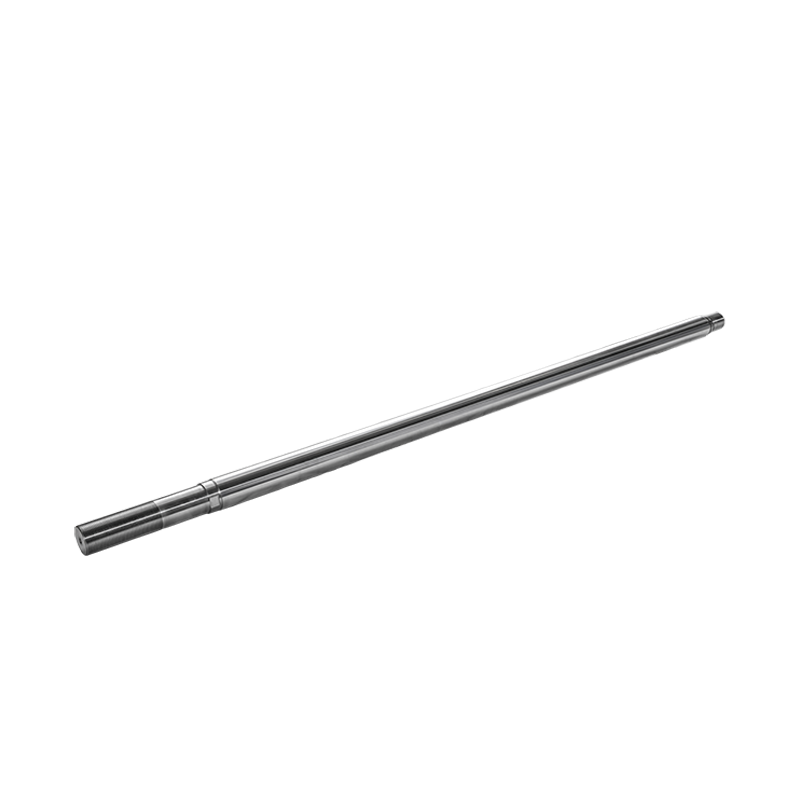

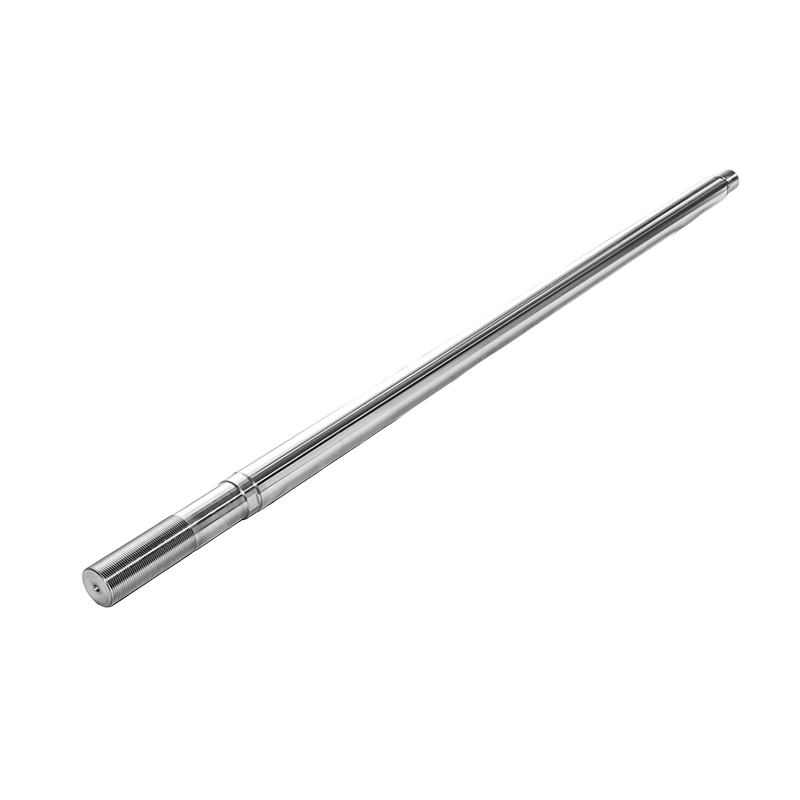

Tie bar guide rod for injection molding machinery

Barrelize supply the good quality with proper tolerances and matching specifications.

*Material: High quality 38CrMoAlA ,42CrMo
*Treatment: Nitriding,Electroplating
*Diameter : Can be cusomtized
*Application: for injection machine
*Benefit: ensure consistent and quality molding.Improved product quality
  • Quality Raw Materials
  • Patent Certification
  • Advance R&D Craft
  • High Performance
  • E-co Friendly

Product Video

Video Player

Product Specification

What is tie bar ?

Tie bar is another impart part of an injection molding machine. Tie bar helps to main a fixed distance between the moving plate and the fixed plate and keep the stable linear motion of the flow.


Barrelize can operate several treatment in-house such as for your injection tie bar: nitriding, chrome plating. Among them, nitriding treatment is the widely used one as it’s almost suitable for all general purpose application and normally work well with all OEM injection machines.

How to make the tie bar with nitriding treatment ?

Barrelize has its own nitriding furnace in house. The tie bar will be put into the nitriding furnace with nitrogen under a certain temperature and humidity environment. After 5 days of deep nitrding, a nitrided layer with relatively high hardness is formed on the surface of the tie bar.


What 's  the specification of Barrelize nitrided tie bar?

The nitrided layer can reach 0.05-0.07mm. The hardness can reach HV950±50or above, equivalent to HRC68~69.

The general advantage of Barrelize Nitrided Tie Bar: it can improve the corrosion resistance and wear resistance.

The main benefits of Barrelize Nitrided Tie Bar: improve the performance and the lifetime.

Call us now to talk to our team about your specific demand. We have the experts here to listen to your demands and understand what you are looking for.


Product

Material Base

Treatment

Technical Parameter

Application

Tie bar

38CrMoAlA

Nitriding

Tempering hardness:HB260-280
Nitriding hardness:HV950
Nitride layer depth:0.4-0.6MM

for injection machine

Tie bar

42CrMo

ElectroPlating

Tempering hardness:HB250-280
Electroplating thickness:0.02-0.03MM

for injection machine

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Tie bar guide rod for injection molding machinery suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Tie bar guide rod for injection molding machinery Service & Cooperative
