OEM Nitrided Screw head

Home / Product / Front-end Components / Screw head / Nitrided Screw head

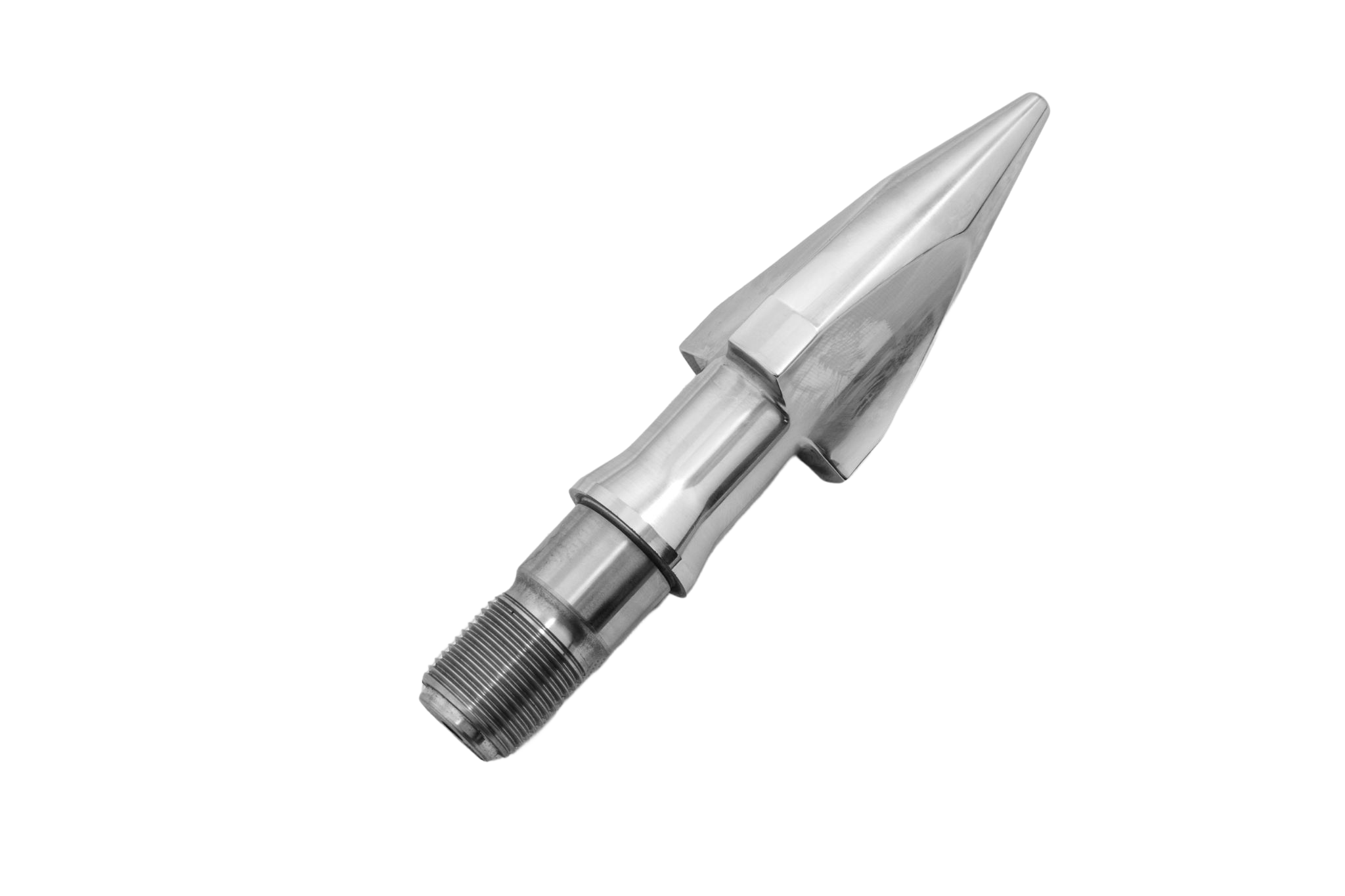

Nitrided Screw head

Barrelize front-end components for injection molding equipment ensure consistent performance and quality

*Material: High quality 38CrMoAlA 42CrMo,SKD61,full hard Steel
*Treatment: Nitriding,Electroplating
*Diameter : Can be customized
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,Improved wear life in abrasive applications
Request a Quote
  • Quality Raw Materials
  • Patent Certification
  • Advance R&D Craft
  • High Performance
  • E-co Friendly

Product Video

Video Player

Product Specification

What is a screw head?

The screw head can be called screw tip assembly and also, is an important component of the injection molding machine.

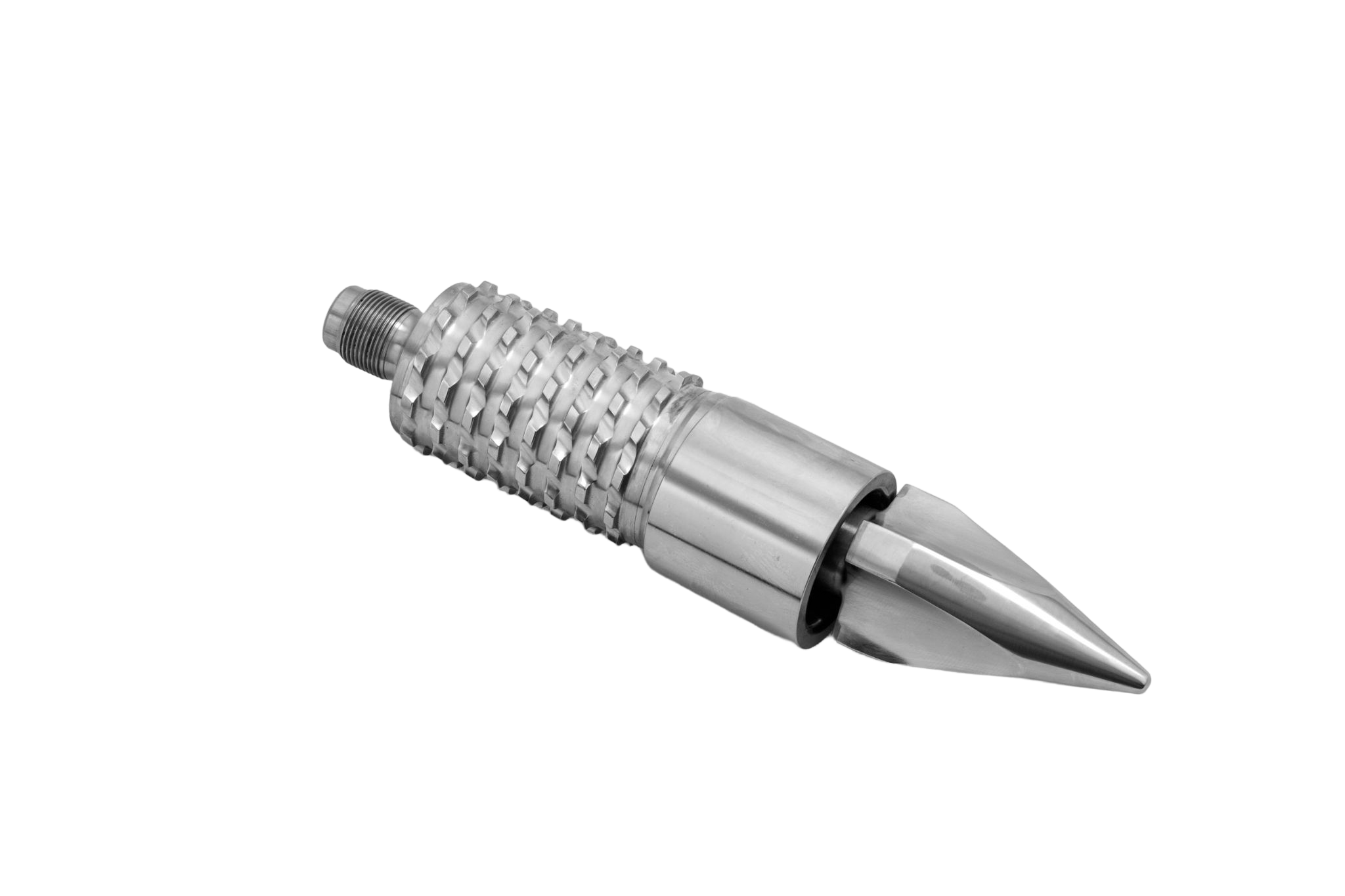

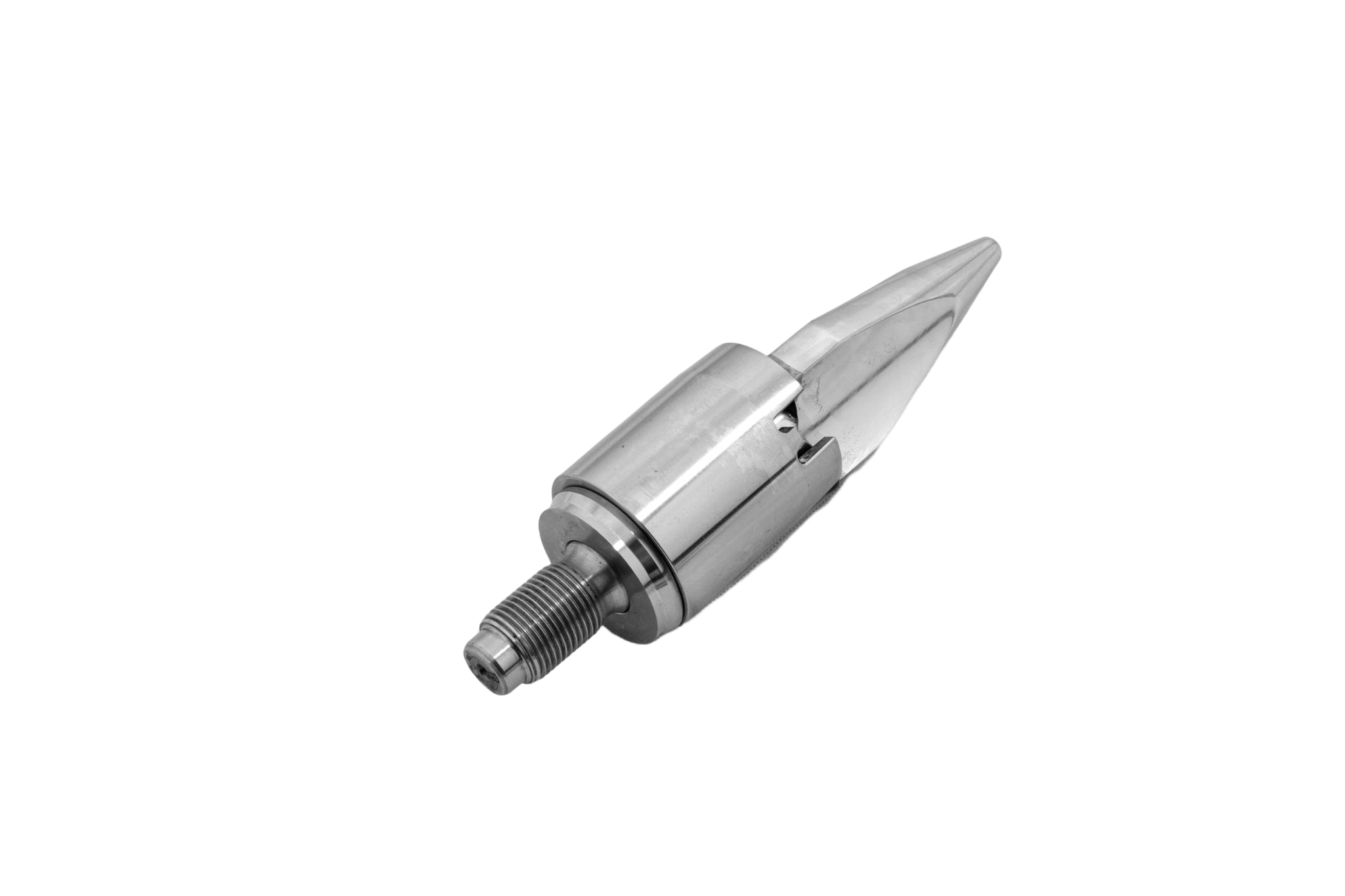

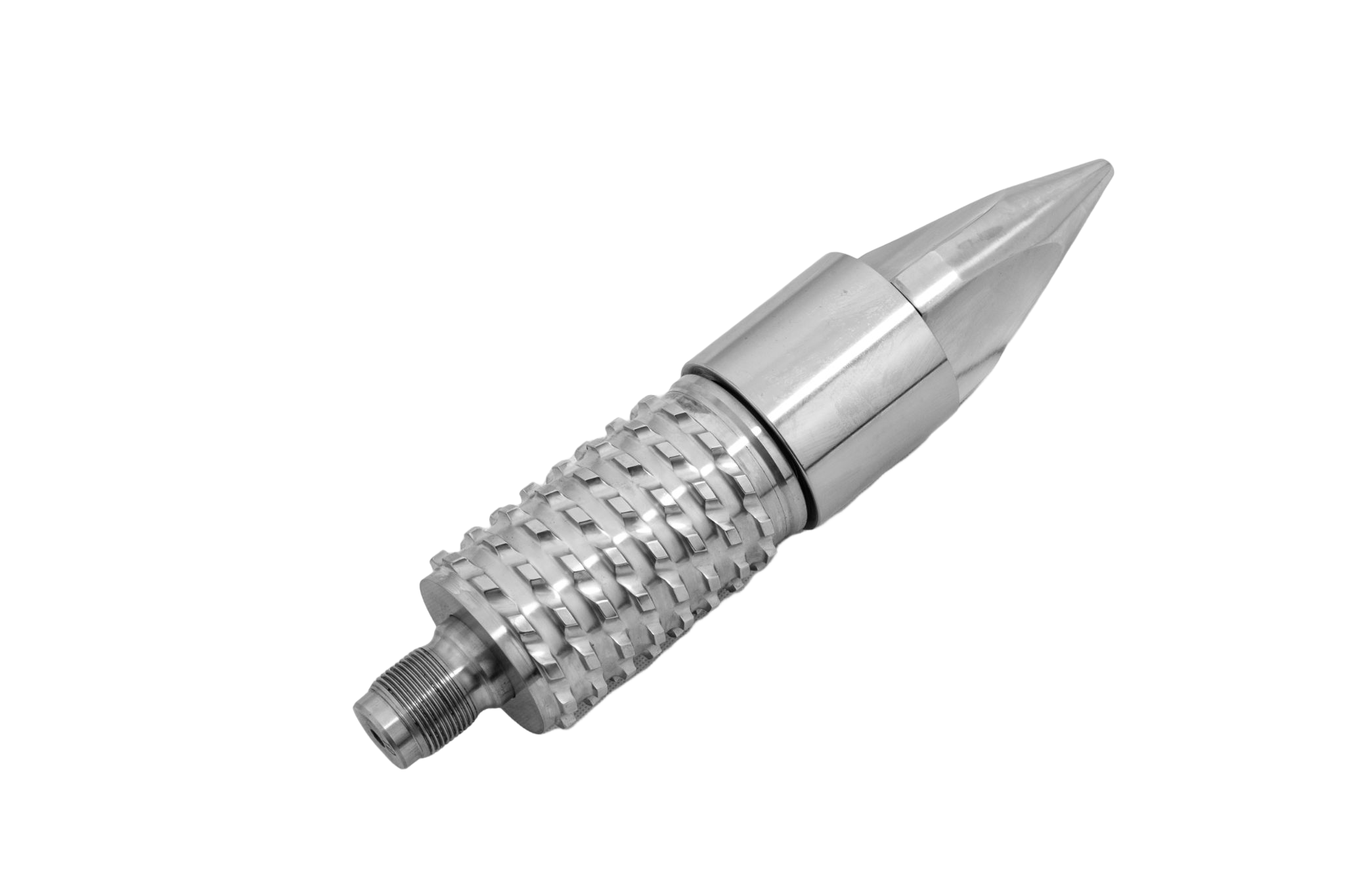

The screw tip assembly is made of 3 parts: screw tip, check ring(can be called non-return ring), and thrust ring.

What is the function of a screw head?

The function is to maintain the effective injection pressure. During the pre-plasticizing process, the plasticized melt can be discharged into the storage barrel, and at the time of high-pressure injection, the melt at the front of the screw head can be effectively closed to prevent backflow.


Barrelize can operate several treatments in-house such as for your injection screw head: nitriding, bimetallic, fully hard. Among them, nitriding treatment is the most widely used one as it’s almost suitable for all general purpose applications.

What’s the specification of Barrelize Screw Head:
The hardness can reach HV950±50or above, equivalent to HRC68~69.

What are the main features of Barrelize Screw Head:

1. Flexible and smooth structure, which makes itself easy to clean, easy to assemble, and disassemble
2. The thread of the screw head is opposite to the thread direction of the screw, so it can prevent loosening during charging
3. It has a suitable match clearance between the check ring and the barrel. So it can prevent the resin backflow.


Call us now to talk to our team about your specific demand. We can assist you with screw tips of customized size to match your injection machine

Product

Material Base

Treatment

Technical Parameter

Application

Screw head

38CrMoAlA

Nitriding

Tempering hardness:HB260-280
Nitriding hardness: HV950
Nitride layer depth: 0.4-0.6MM
Brittleness≤2

common material

Screw head

42CrMo

Coating

Tempering hardness :HB250~280
coating thickness 0.02~0.03MM

Transparent material

Screw head

SKD61

Vacuum quenching

Hardness : HRCS0-55

 suitable for engineering plastics with 40% GF or less

Screw head

Full hard powder metallurgy steel

vacuum quenching process

Hardness: HRC57~59
electroplating thickness: 0.02~0.03MM

TPA100, suitable for engineering plastics with 40% GF or less

Screw head

Full hard powder metallurgy steel

vacuum quenching process

Hardness: HRCS9~61
electroplating thickness: 0.005~0.01MM

TPA200, suitable for high viscosity, high temperature,
high pressure and other plastic materials

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Nitrided Screw head suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Nitrided Screw head Service & Cooperative
