OEM Nitrided Injection Barrel

Home / Product / Barrels / Injection Barrel / Nitrided Injection Barrel

Nitrided Injection Barrel

Barrelize Injection Barrel is are produced to the highest quality standards

*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter : Can be cusomtizedΦ20mm~ Φ300mm
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,minimize wear,boost output
Request a Quote
  • Quality Raw Materials
  • Patent Certification
  • Advance R&D Craft
  • High Performance
  • E-co Friendly

Product Video

Video Player

Product Specification

What is the nitrided injection barrel?

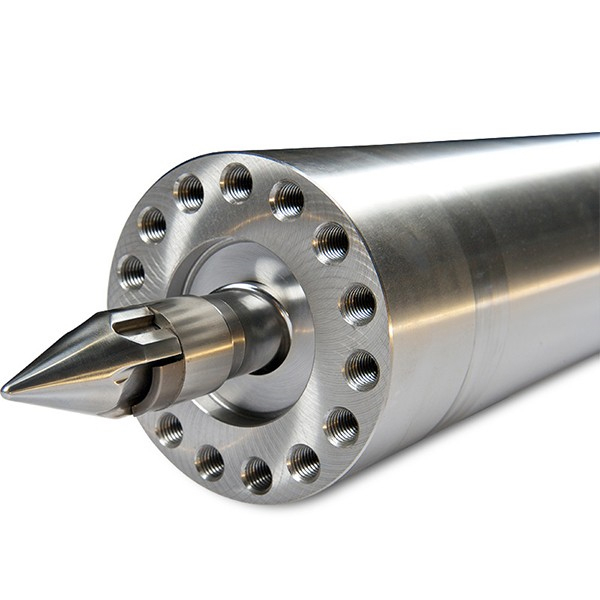

The injection barrel is an important part of the injection molding machine. The injection barrel works together with the injection screw to convey, compact, melt, stir and press the plastic. All of this is done by the rotation of the screw within the barrel.
Barrelize can operate several treatments in-house such as for your injection barrel: nitriding, bimetallic. Among them, the nitrided injection barrel is the most widely used one as it’s almost suitable for all general purpose application and normally work well with all OEM injection machines.

How to make the nitrided Injection barrel?

Barrelize has its own nitriding furnace in-house. The injection barrel will be put into the nitriding furnace with nitrogen under a certain temperature and humidity environment. Barrelize nitrided injection barrel will be put into the furnace for 5 days and nights. After 5 days' deep barrel nitriding, a nitrided layer with relatively high hardness is formed on the surface of the barrel.

What 's the specification of Barrelize nitrided Injection barrel?

The nitrided layer can reach 0.05-0.07mm. The hardness can reach HV950±50or above, equivalent to HRC68~69.

The general advantage of Barrelize nitrided barrel: it can improve corrosion resistance and wear resistance.

Call us now to talk to our team about your specific demand. We have an expert here to listen to your demands and understand what you are looking for.


Product

Material Base

Treatment

Technical Parameter

Application

Barrel

38CrMoAlA

Nitriding

tempering hardness :HB260-280
nitriding hardness: HV950
nitride layer depth :0.4-0.6MM,
brittleness:≤ 2

Commonly used for acid-free plastics with GF less than 10%,
such as PP\PS＼AS\ABS\TPU\TPE

Barrel

38CrMoAlA

Bimetallic Fe-based alloy

Alloy thickness: 1.5-2MM
Surface hardness:HRC60-65

Commonly used for adding acid plastic with GF less than 30%,PC/PA

Barrel

38CrMoAlA

Bimetallic Ni-based alloy+15% tungsten carbide powder

Alloy thickness: l.5-2MM,
Surface hardness HRC52~55

Commonly used for adding acid plastic with GF
less than 35%, PA/LCP/PBT

Barrel

38CrMoAlA

Bimetallic Ni-based alloy+25% tungsten carbide powder

Alloy thickness: l.5-2MM
Surface hardness: HRC58~62

generally used to add aci lastic PEEK/PPS/LCP/flame retardant

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Nitrided Injection Barrel suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Nitrided Injection Barrel Service & Cooperative
