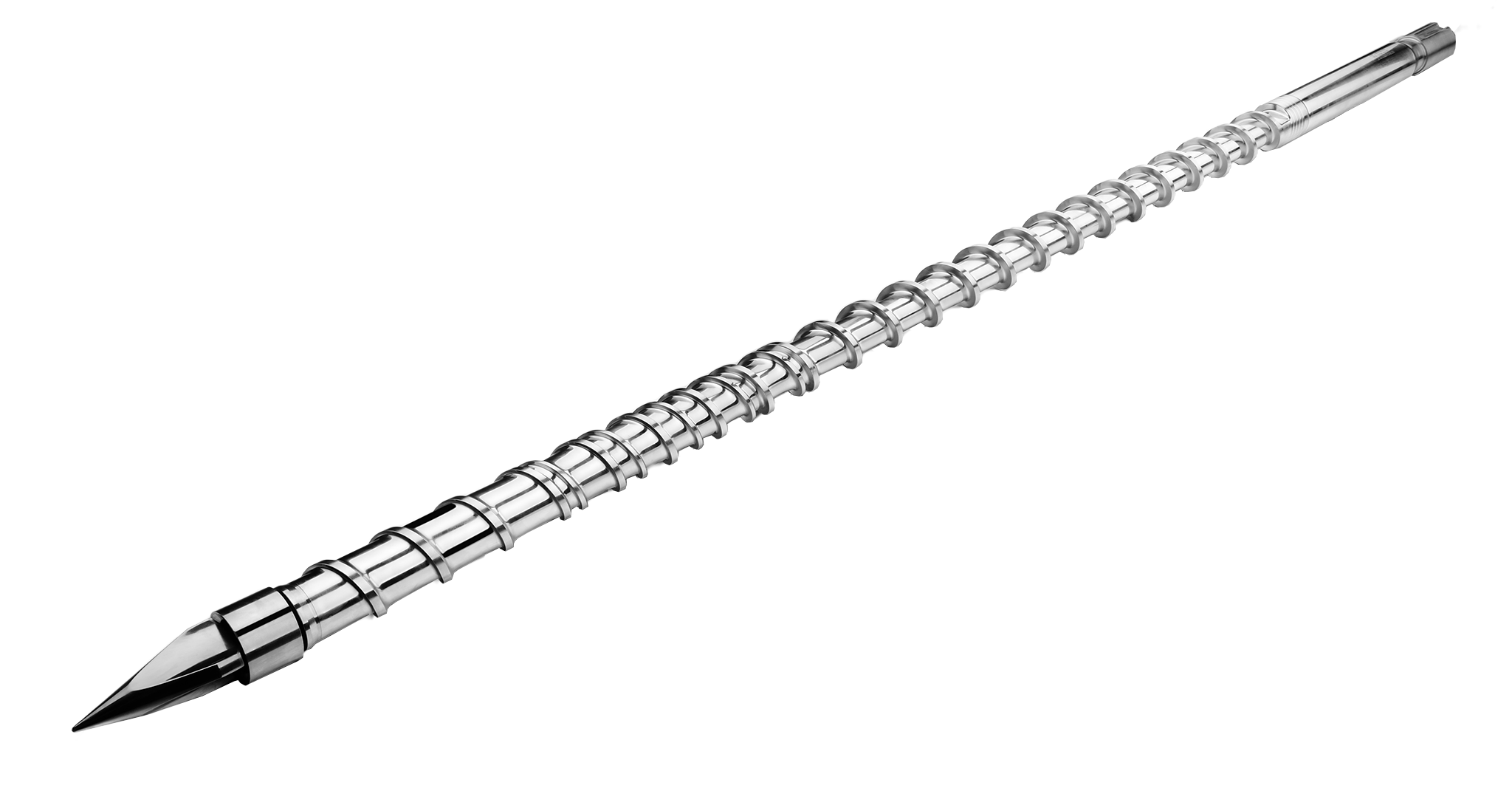

Bimetallic Injection Screw

Barrelize Injection Screw is a high performance screw with customized properties to process plastic based on your requirements

*Material: High quality 38CrMoAlA 42CrMo,Full Hard

*Treatment: Nitriding,Bimetallic,Electroplating

*Diameter of Screw: Can be cusomtizedΦ20mm~ Φ300mm

*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect

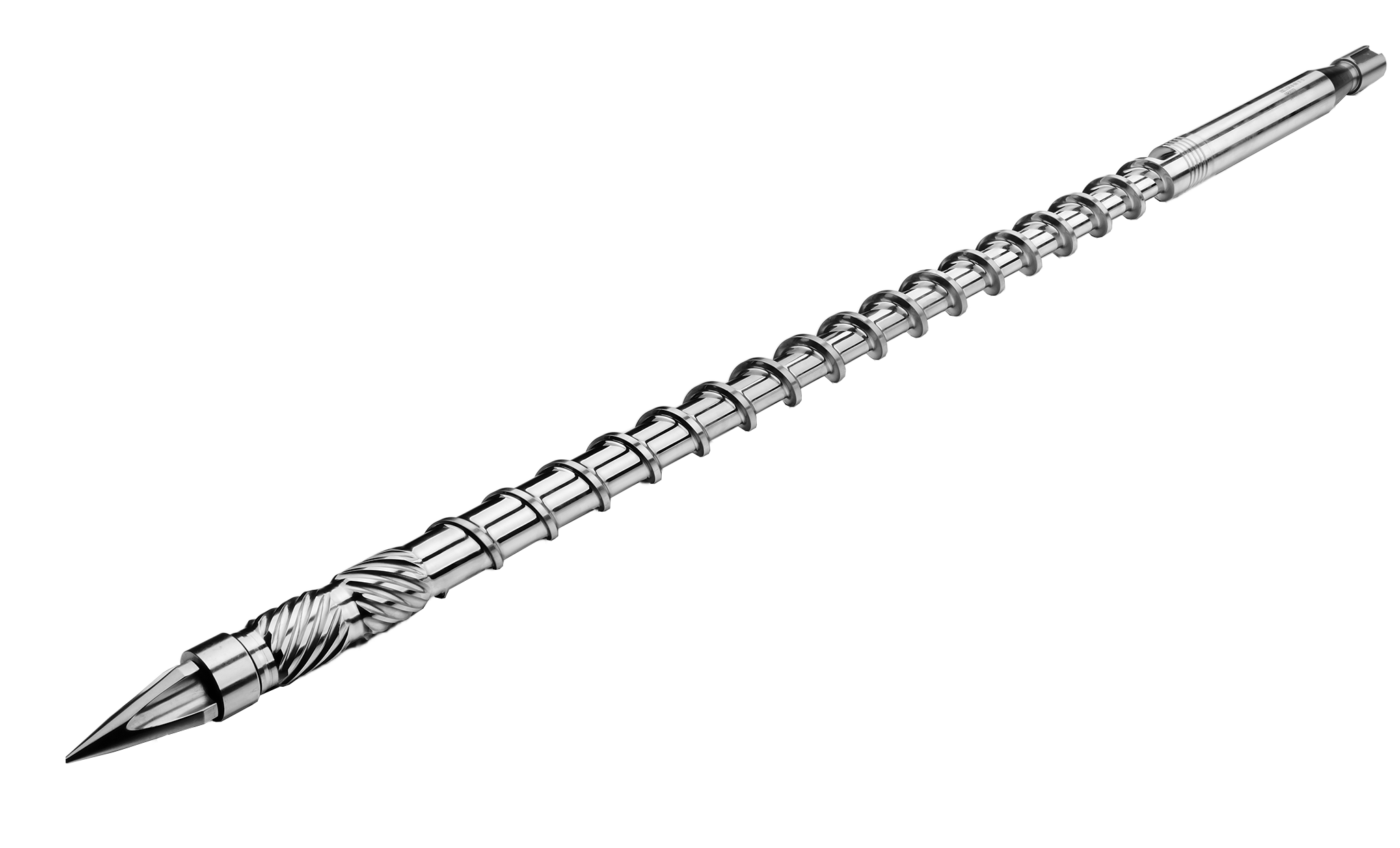

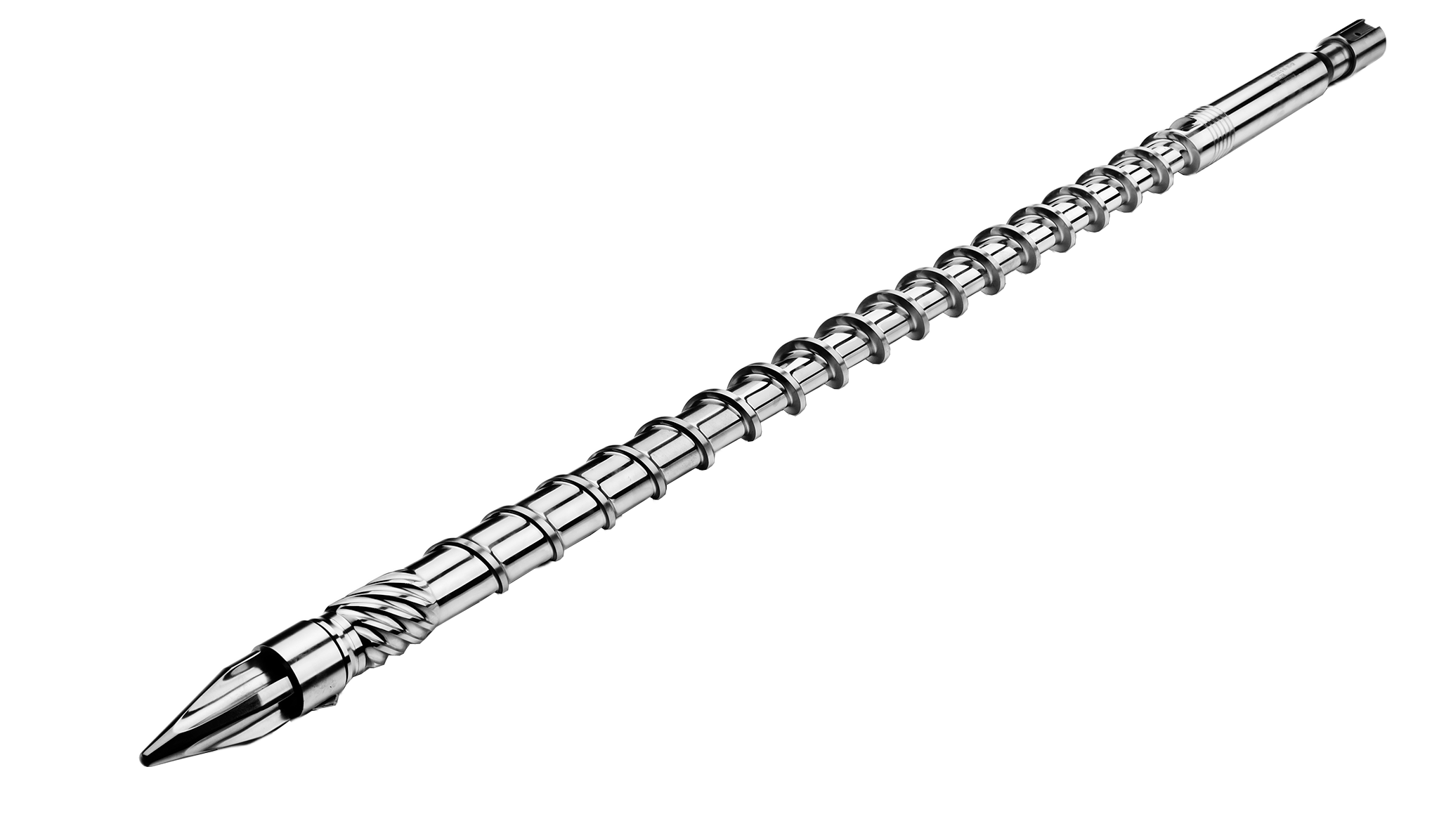

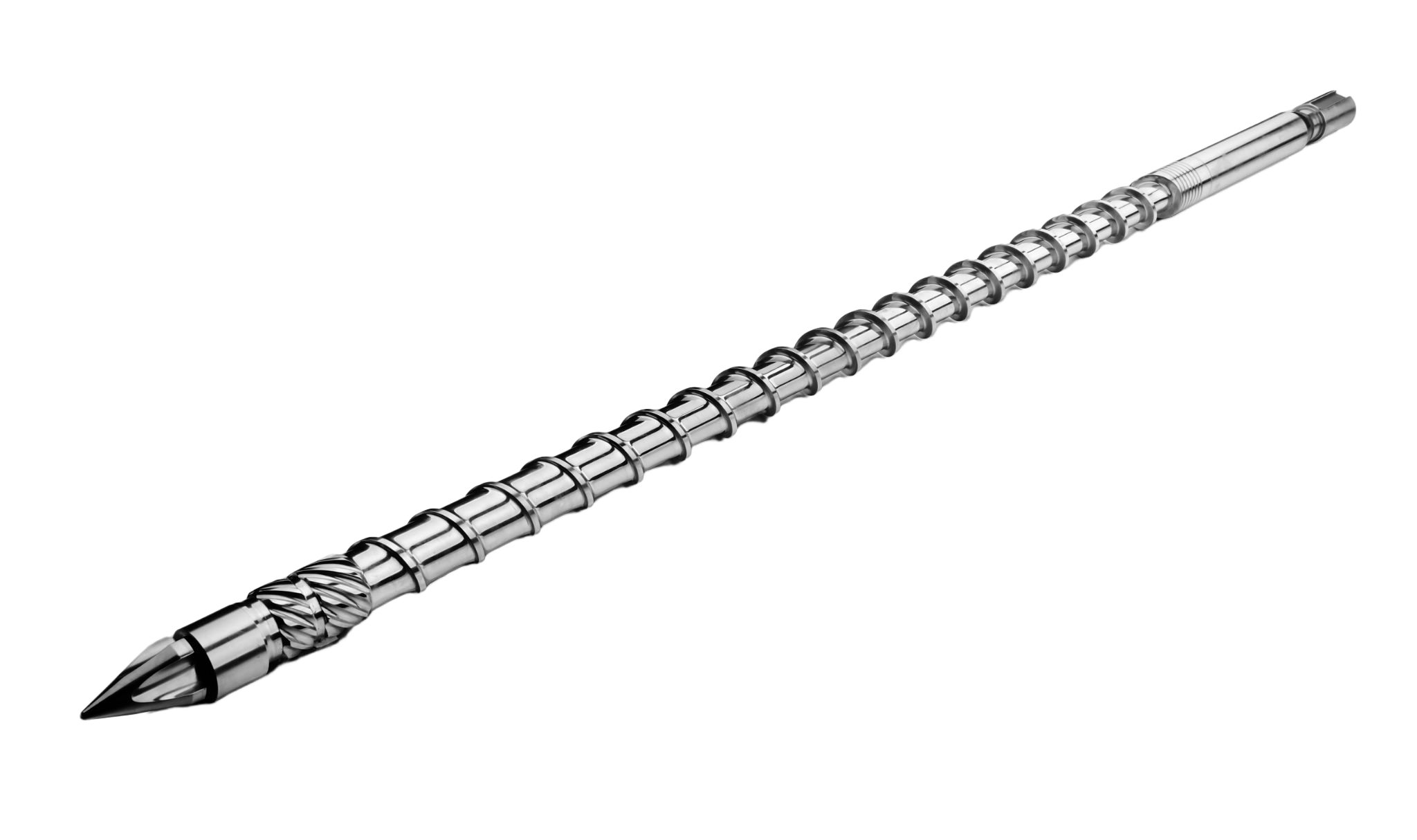

*Wide screw designs: Barrier flight screw, Dispersive Mixers,degassing type,Multi Start type,ect

*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output

What are Bimetallic injection screws ?

Barrelize Bimetallic injection screws are made of two alloy metals. The first metal is the base material and the second metal is the coating material. So the bimetallic injection screws have better corrosion and abrasion resistance,more durable, and last longer than non-bimetallic ones.

How to make the bimetallic injection screw with two metals ?

Barrelize use PTA welding machines to spray and weld the special ni-based alloy powders on the screw's ridge, which greatly provide high surfacing bonding strength, and improve the resistance of the bimetallic injection screw.

What's the specification of Barrelize Bimetallic injection screws ?

For the first base material, you can choose 38CrMoALA and 42CrMo. The second metal is ni-based alloy usually. Barrelize can make the thickness of bimetallic layer: 1.5-2mm. The hardness can reach HRC53-HRC56.

The general advantage of Barrelize bimetallic injection screws: high corrosion resistance, high wear resistance, and high temperature resistance, more durable, longer lifetime.

What is the application for Barrelize Bimetallic injection screws ?

Additive plastic materials with less than 30% glass fiber, corrosion formula, regrinding resin, calcium powder filling, additive fireproof materials, nylon, PVC, PC, PPA, PPO, PPS, PA6T, LCP, ABS, bakelite, fire PC+ glass fiber, Nylon + glass fiber.

Let us know your detailed requirements. we have the expertise and the knowledge to adjust our solutions following your requirement for bimetallic injection screws.

Product	Material Base	Treatment	Technical Parameter	Application
Screw	38CrMoAlA	Nitriding	Tempering hardness: HB260-280 Nitriding hardness: HV950 Nitride layer depth: 0.4-0.6MM Brittleness:≤2.5 Surface finish Ra0.04	used for ordinary acid-free low particle size and does not contain GF. Such as ABS\PP\PS, etc.
Screw	38CrMoAlA	Bimetallic Ni-based alloy	Alloy thickness:≥1.5mm Hardness:HRC53~56 Brittleness :≤2.5 Surface finish Ra0.04	used for adding acid plastic with GF less than 30%
Screw	42CrMo	Bimetallic Ni-based alloy+ElectroPlating	Alloy thickness≥1.5mm ElectroPlating thickness:0.03~0.0SMM Hardness: HRC52~55	transparent material/ color mixing material
Screw	Fully hard powder metallurgy steel	vacuum quenching process	Quenching hardness: HRC57-59, Electroplatable thickness: 0.03~0.05MM	suitable for engineering plastics with 35% GF or less, high temperature materials.PA+ GF/ LCP+ GF/High Temperature PC
Screw	Full hard powder metallurgy steel	vacuum quenching process	Quenching hardness: HRC59~61 Thickness 0.005~0.01MM	suitable for engineering plastics with 45% GF or less

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Bimetallic Injection Screw suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Bimetallic Injection Screw Service & Cooperative
