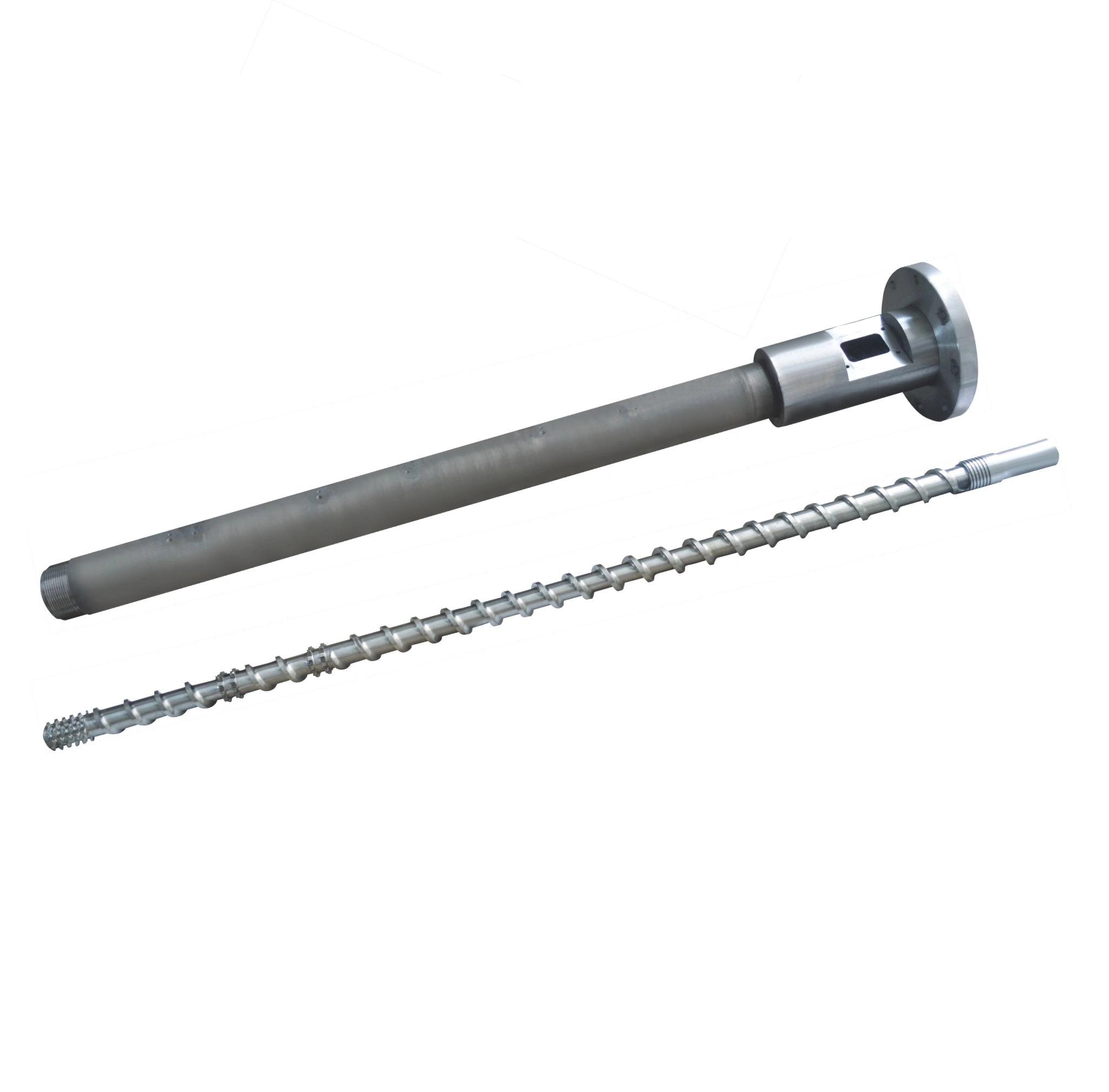

Nitrided Extrusion Screw

Barrelize can design and produce high performance extrusion screw to fit your application

*Material: High quality 38CrMoAlA 42CrMo

*Treatment: Nitriding,Bimetallic,Electroplating

*Diameter of Screw: Can be cusomtizedΦ15mm~ Φ300mm

*Screw Type: Vented type non-vented type, high-wear type,Barrier flight type, Mix type ect

*Suitable for: PP,PE,ABS,PVC,TPE ect

*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output

What are nitrided extrusion screws ?

Nitriding is a heat treating process that diffuses nitrogen into the surface of an extrusion screw to create a case-hardened surface. It gives excellent corrosion resistance against humid air and water. It is a case hardening process.

How to make the nitrided extrusion screws?

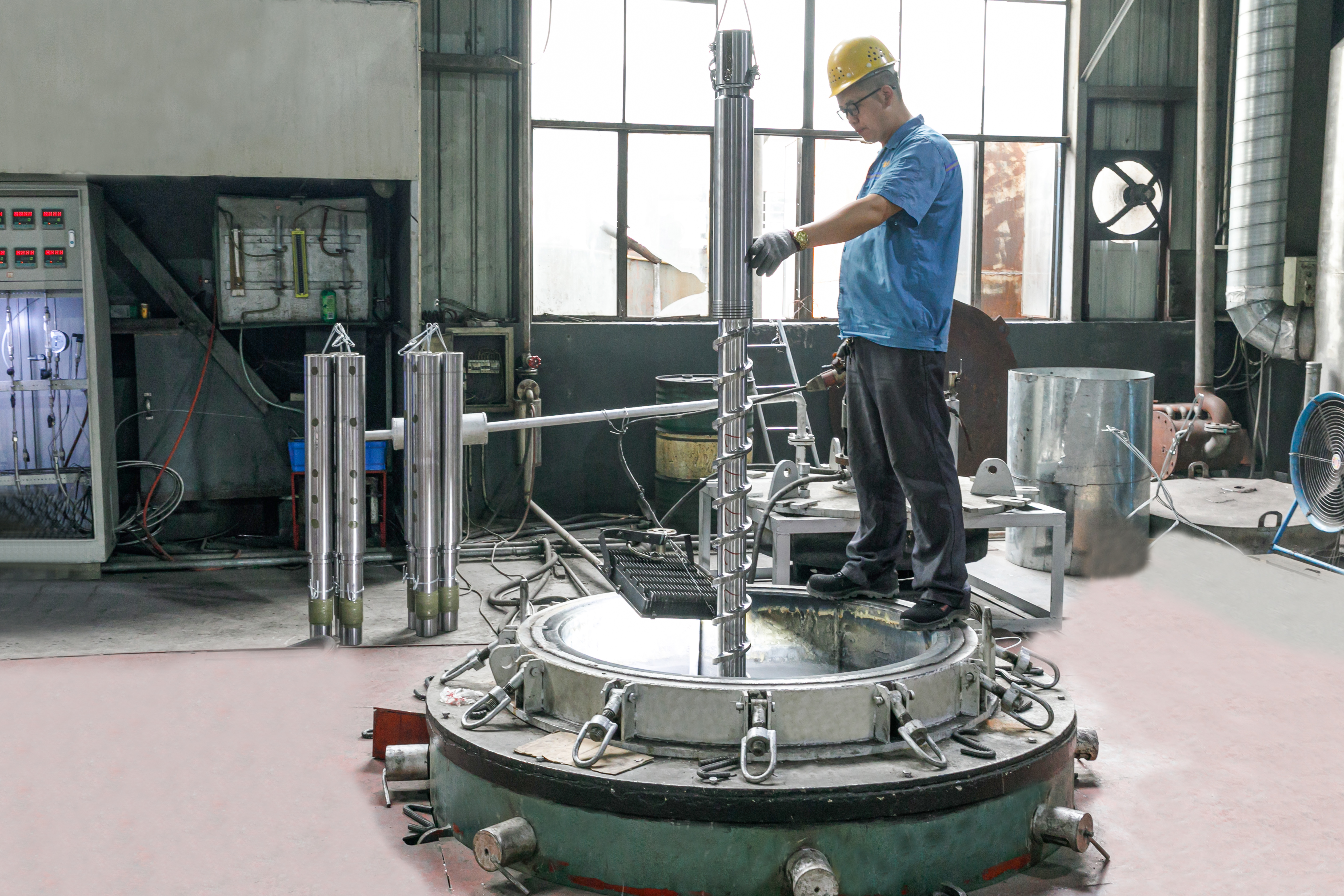

Barrelize has its own nitriding furnace in-house. The extrusion screw will be put into the nitriding furnace with nitrogen diffused on its surface under a certain temperature and humidity environment. Barrelize nitrided extrusion screw will be put into the furnace for 5 days and nights. After 5 days of deep nitriding, a nitrided layer with relatively high hardness is formed on the surface of the screw.

What's the specification of Barrelize nitrided extrusion screws?

The nitrided layer can reach 0.05-0.07mm. The hardness can reach HV950±50or above, equivalent to HRC68~69.

The general features of Barrelize nitrided extrusion screws: they can improve corrosion resistance and wear resistance.

The main benefits of nitrided extrusion screws: improve the plasticizing rate and increased production.

Let us know your detailed requirements. we have the expertise and the knowledge to adjust our solutions following your requirement for nitrided extrusion screws

Product	Material Base	Treatment	Technical Parameter	Application
Screw	38CrMoAlA	Nitriding	Tempering hardness: HB260-280 Nitriding hardness: HV950 Nitride layer depth: 0.4-0.6MM Brittleness :≤2.5 Surface finish Ra0.04	used for ordinary acid-free low particle size and does not contain GF. Such as ABS\PP\PS, etc.
Screw	38CrMoAlA	Bimetallic Ni-based alloy	Alloy thickness:≥1.5mm Hardness:HRC53~56 Brittleness :≤2.5 Surface finish Ra0.04	used for adding acid plastic with GF less than 30%
Screw	42CrMo	Bimetallic Ni-based alloy+ElectroPlating	Alloy thickness≥1.5mm ElectroPlating thickness : 0.03~0.0SMM Hardness: HRC52~55	transparent material/ color mixing material
Screw	Fully hard powder metallurgy steel	vacuum quenching prooess	Quenching hardness: HRC57-59, Electroplatable thickness: 0.03~0.05MM	suitable for engineering plastics with 35% GF or less, high temperature materials.PA+ GF/ LCP+ GF/High Temperature PC
Screw	Full hard powder metallurgy steel	vacuum quenching prooess	Quenching hardness: HRC59~61 Thickness 0.005~0.01MM	suitable for engineering plastics with 45% GF or less

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Nitrided Extrusion Screw suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Nitrided Extrusion Screw Service & Cooperative
