Screw Head with Electroplating for Injection Machine Suppliers, Manufacturers, Factory

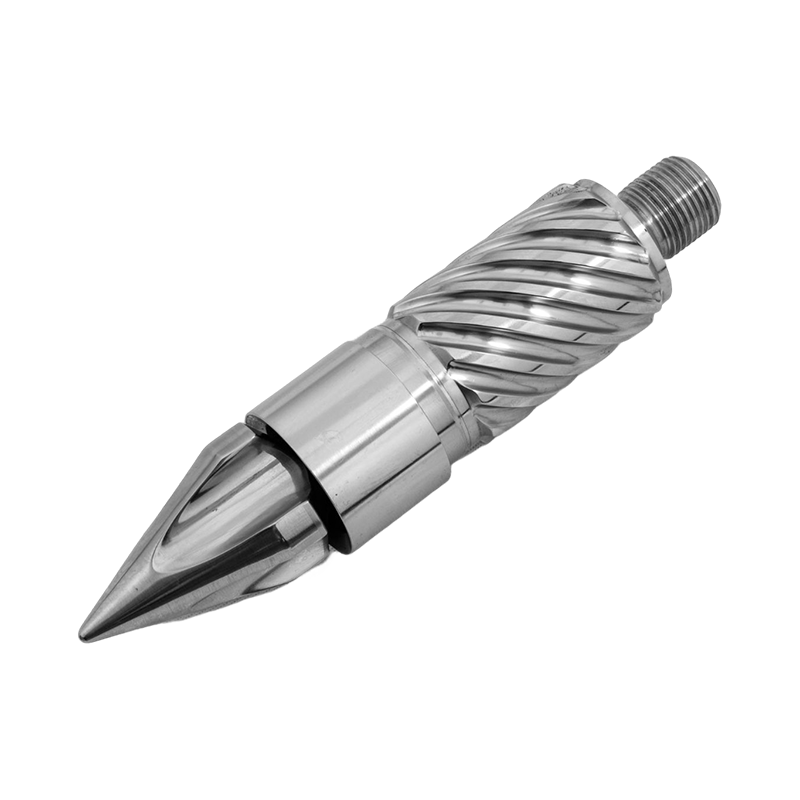

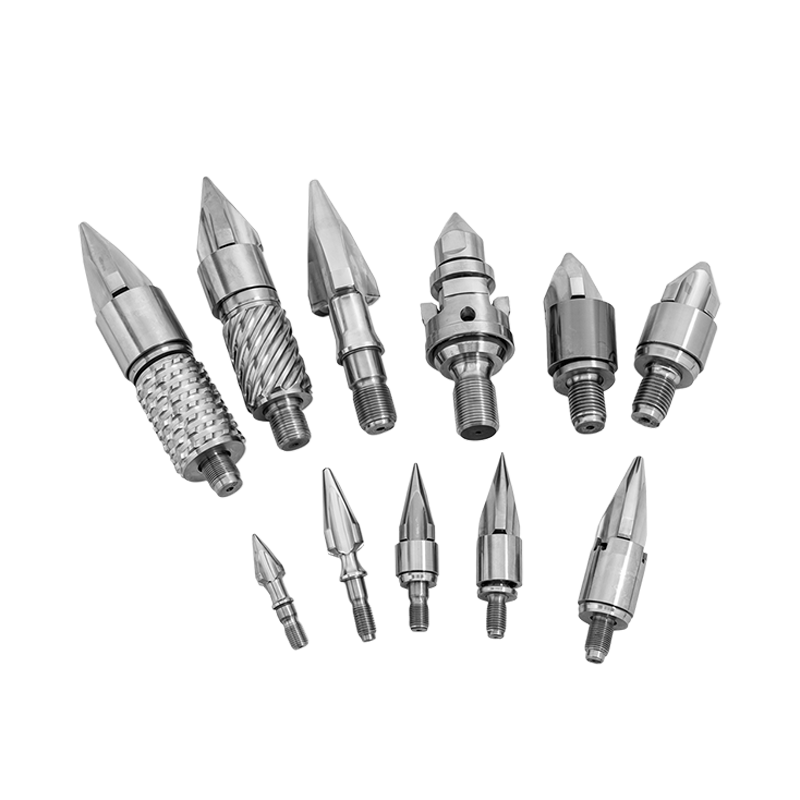

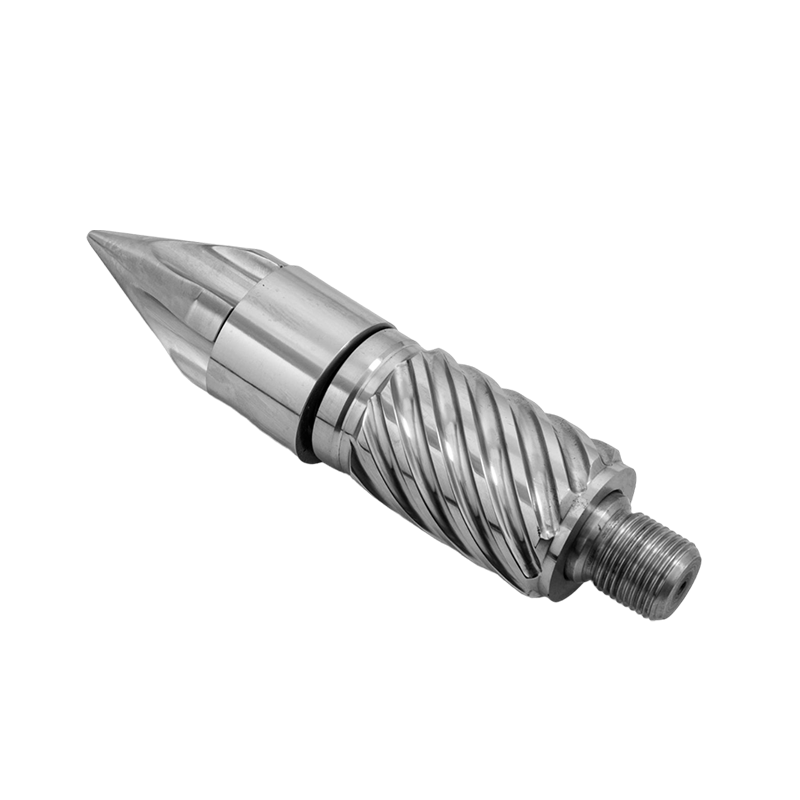

Screw Head with Electroplating for Injection Machine

Barrelize front-end components for injection molding equipment ensure consistent performance and quality

*Material: High quality 38CrMoAlA 42CrMo,SKD61,full hard Steel

*Treatment: Nitriding,Electroplating

*Diameter : Can be customized

*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect

*Benefit: Improved product quality,Improved wear life in abrasive applications

What is a screw head ?

The screw head can be called screw tip assembly and also, is an important component of the injection molding machine.

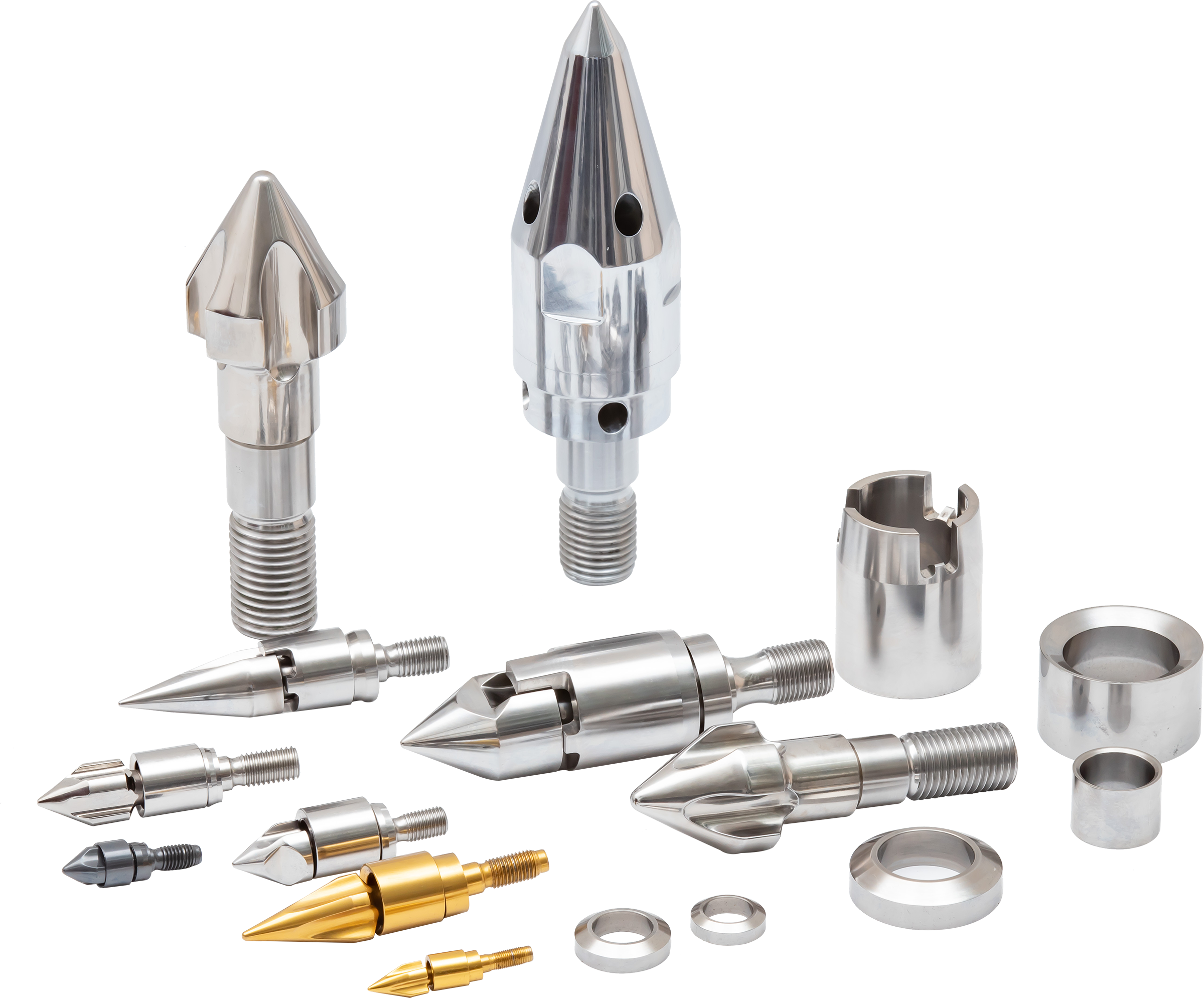

The screw tip assembly is made of 3 parts: screw tip, check ring(can be called non-return ring), and thrust ring.

What is the function of a screw head ?

The function is to maintain the effective injection pressure. During the pre-plasticizing process, the plasticized melt can be discharged into the storage barrel, and at the time of high-pressure injection, the melt at the front of the screw head can be effectively closed to prevent backflow.

Barrelize can operate several treatments in-house such as for your injection screw head: nitriding, bimetallic, fully hard. Among them, nitriding treatment is the most widely used one as it’s almost suitable for all general purpose applications.

What’s the specification of Barrelize Screw Head:
The hardness can reach HV950±50or above, equivalent to HRC68~69.

What are the main features of Barrelize Screw Head:

1. Flexible and smooth structure, which makes itself easy to clean, easy to assemble, and disassemble

2. The thread of the screw head is opposite to the thread direction of the screw, so it can prevent loosening during charging

3. It has a suitable match clearance between the check ring and the barrel. So it can prevent the resin backflow.

Call us now to talk to our team about your specific demand. We can assist you with screw tips of customized size to match your injection machine.

Product	Material Base	Treatment	Technical Parameter	Application
Screw head	38CrMoAlA	Nitriding	Tempering hardness :HB260-280 Nitriding hardness: HV950 Nitride layer depth: 0.4-0.6MM Brittleness≤2	common material
Screw head	42CrMo	Coating	Tempering hardness :HB250~280 coating thickness 0.02~0.03MM	Transparent material
Screw head	SKD61	Vacuum quenching	Hardness :HRCS0-55	suitable for engineering plastics with 40% GF or less
Screw head	Full hard powder metallurgy steel	vacuum quenching process	Hardness: HRC57~59 electroplating thickness: 0.02~0.03MM	TPA100, suitable for engineering plastics with 40% GF or less
Screw head	Full hard powder metallurgy steel	vacuum quenching process	Hardness: HRCS9~61 electroplating thickness: 0.005~0.01MM	TPA200, suitable for high viscosity, high temperature, high pressure and other plastic materials

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Screw Head with Electroplating for Injection Machine suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Screw Head with Electroplating for Injection Machine Service & Cooperative
