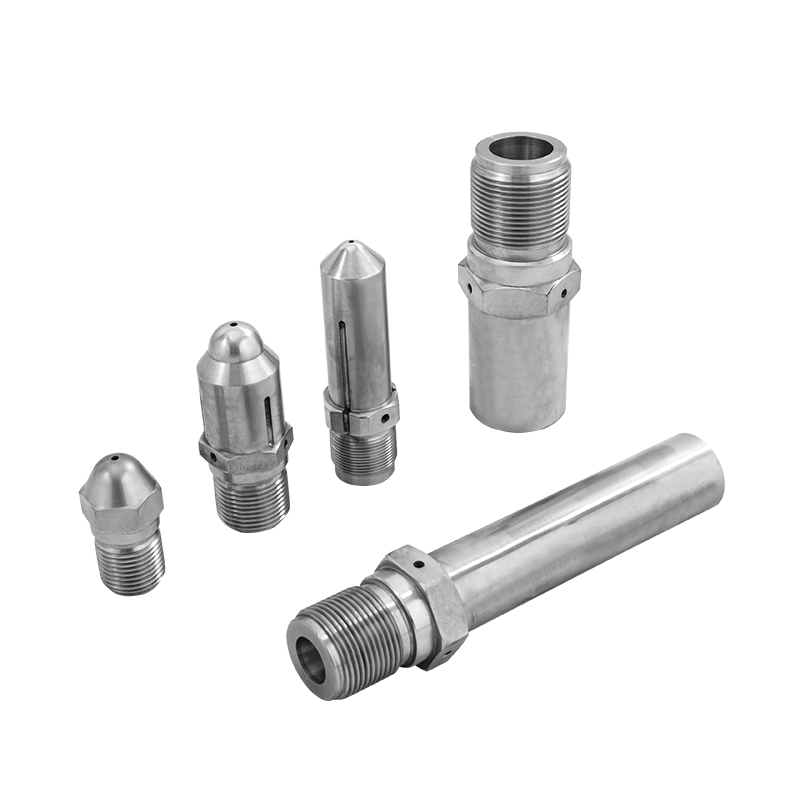

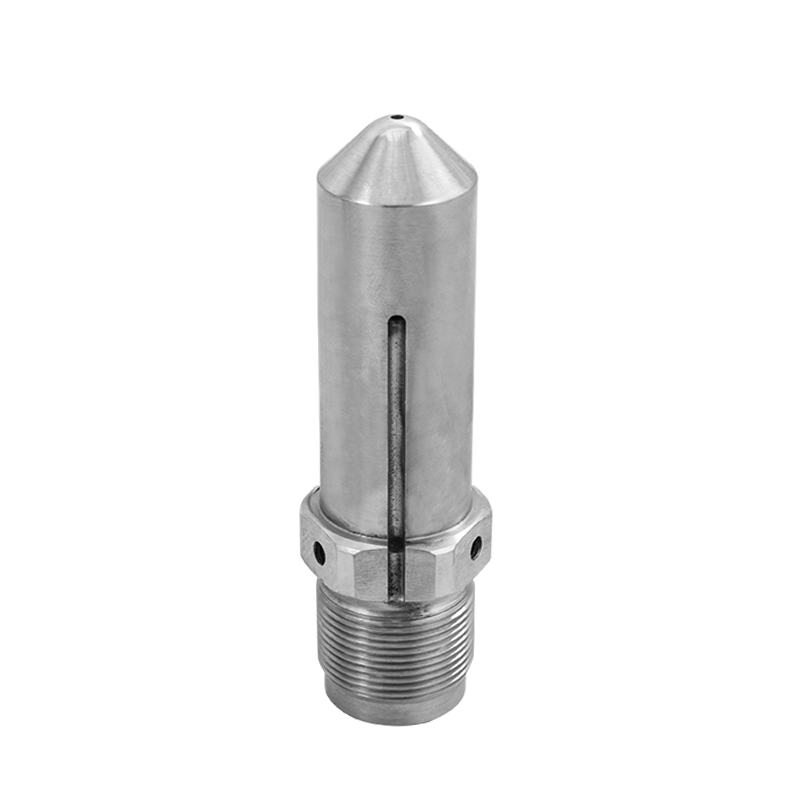

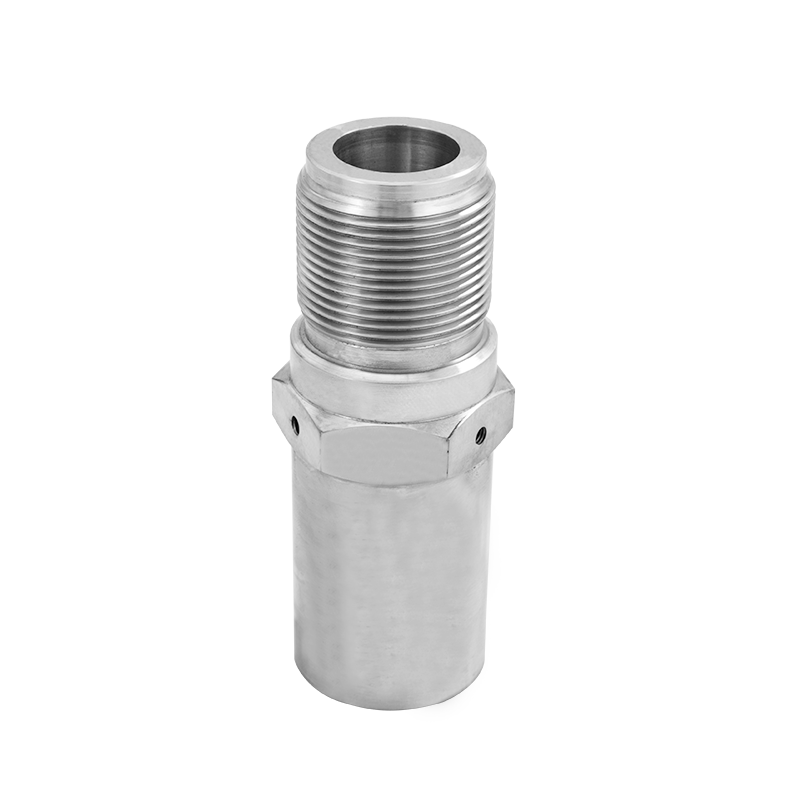

SKD61 Nozzle Tips with Electroplating Treatment

Barrelize nozzle tip is universal design for easy installation.

*Material: High quality 38CrMoAlA 42CrMo,SKD61

*Treatment: Nitriding,Electroplating

*Diameter : Can be cusomtized

*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect

*Benefit: Improved product quality,Prevents mold coining caused by stringing, injection molding.

Request a Quote

Quality Raw Materials
Patent Certification
Advance R&D Craft
High Performance
E-co Friendly

Product Video

Video Player

Product Specification

What is the injection nozzle tip?

The injection nozzle is an important component of the injection molding machine. It provides a bridge between the end cap and the mold.

What is the function of the nozzle tip for the injection molding machine?

The function of the nozzle tip is to transfer the material to the mold, it helps to feed the material to the cavity of the mold

What treatment that Barrelize can operate for your injection nozzle tip?

Barrelize can operate several treatments in-house such as nitriding, and chrome plating. Among them, nitriding treatment is the most widely used one as it’s almost suitable for all general purpose applications.

What types of nozzle tip designs that Barrelize can provide?

Barrelize can customize 3 designs: general purpose, reverse taper, and free flow. Barrelize can optimize your design and size to improve the impact of mold filling and ability.

Different designs have their own advantages and disadvantages. For example, reverse taper design has a larger and wider diameter at the intersection to the mold sprue bushing so it will not freeze so quickly.

Call us now to talk to our team about your specific demand. Barrelize supplies you Nozzle tips in all designs, with all material specs to give you the suitable fit.

Product	Material Base	Treatment	Technical Parameter	Application
Nozzle	38CrMoAlA	Nitriding	Tempering hardness:HB260-280 Nitriding hardness:HV950 Nitride layer depth 0.4-0.6MM Brittleness≤2	common material
Nozzle	42CrMo	ElectroPlating	Tempering hardness:HB250-280 electroplating thickness:0.02-0.03MM	Transparent material
Nozzle	SKD61	Vacuum quenching	Hardness :HRC50-55	suitable for engineering plastics with 40% GF or less
Nozzle	SKD61	Vacuum quenching+ ElectroPlating	HRC50-55, Electroplating thickness:0.02-0.03MM Surface Hardness HV900	suitable for high viscosity, high temperature, high pressure and other plastic materials
Nozzle	SKD61	Vacuum quenching	Vacuum hardening with SKD61	spring nozzle / hydraulic nozzle

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are SKD61 Nozzle Tips with Electroplating Treatment suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM SKD61 Nozzle Tips with Electroplating Treatment Service & Cooperative
