OEM Nitrided Nozzle Tips for Injection Machines

Home / Product / Front-end Components / Nozzle Tip / Nitrided Nozzle Tips for Injection Machines

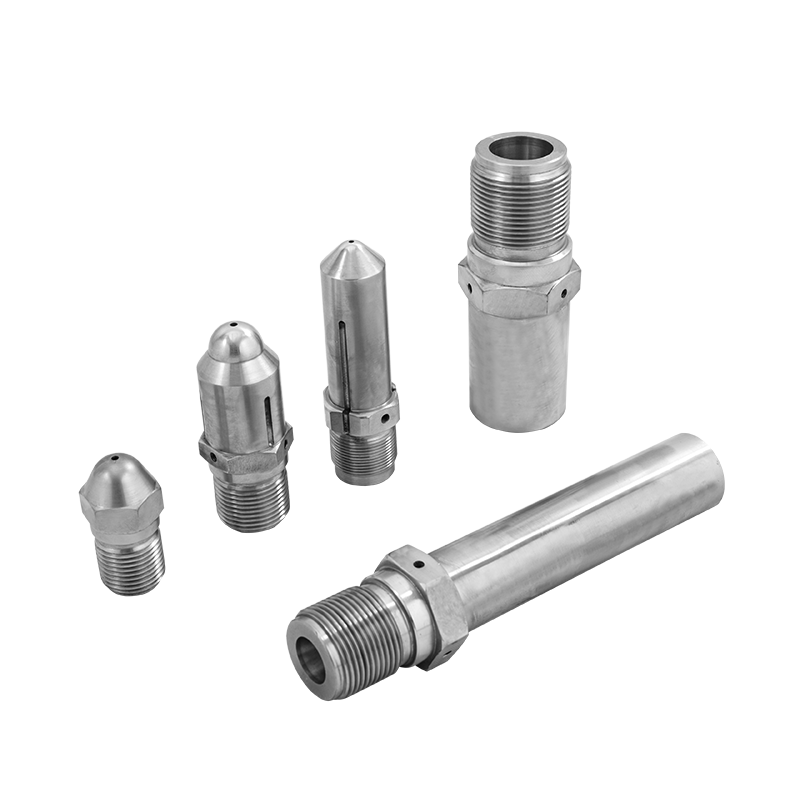

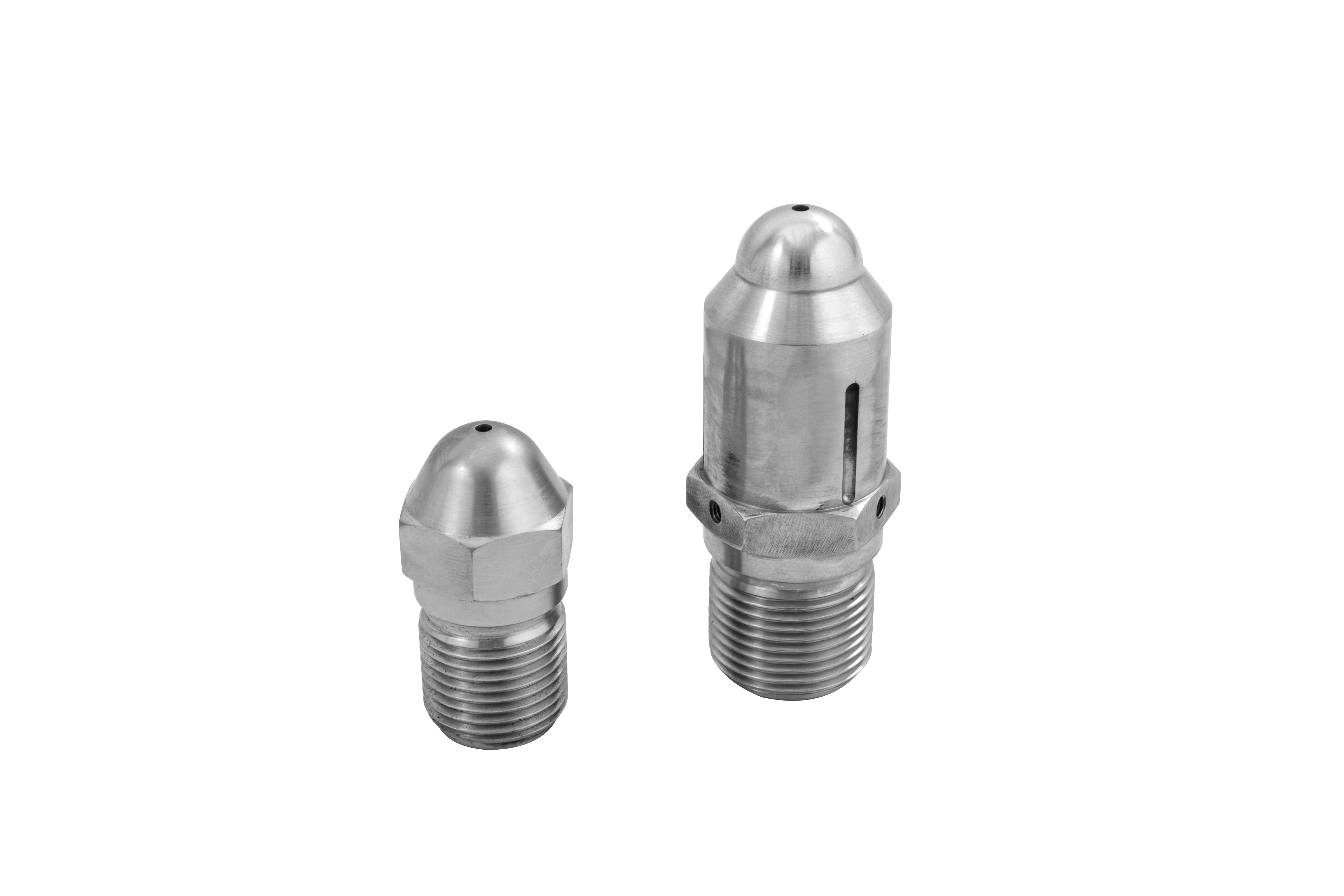

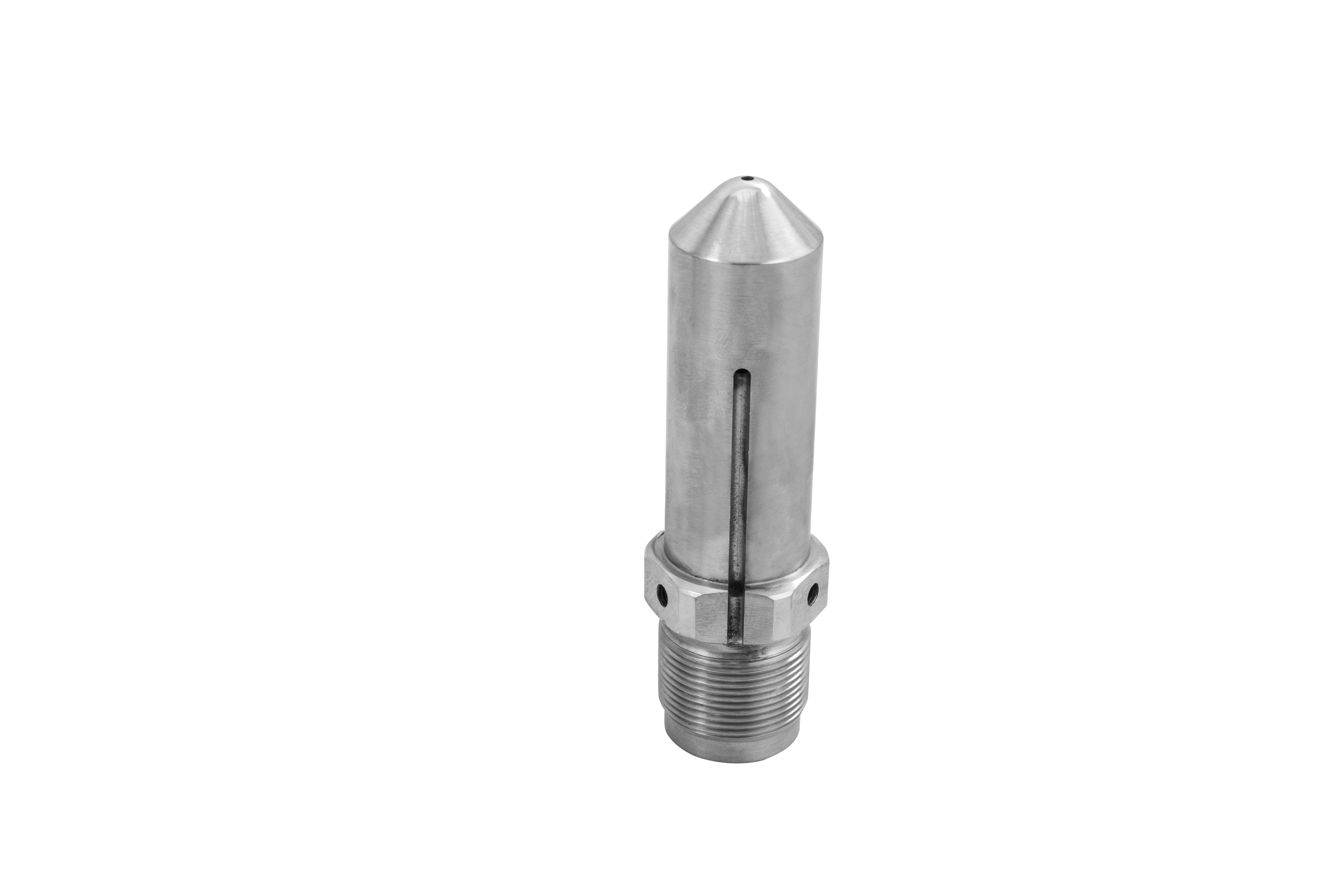

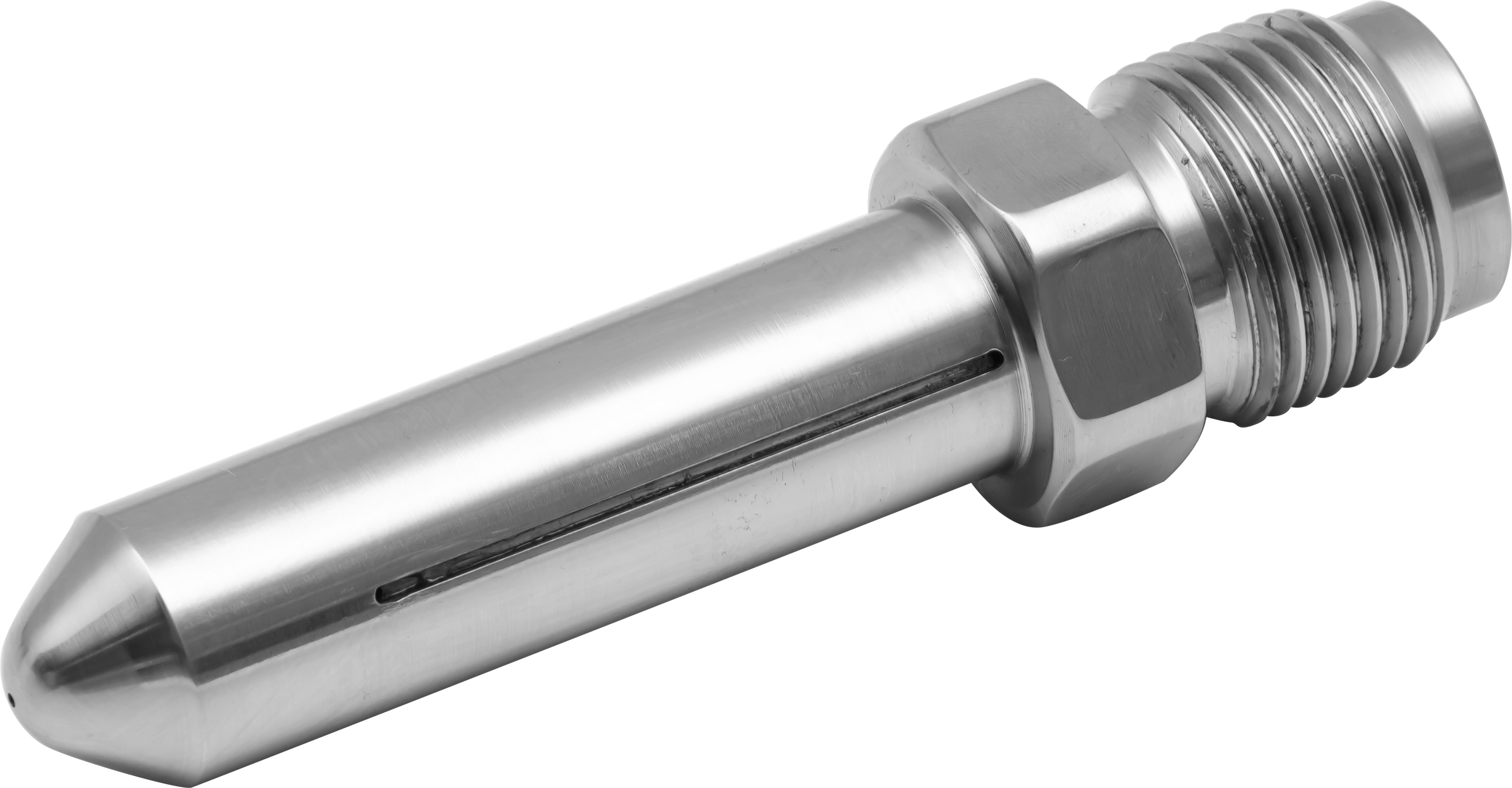

Nitrided Nozzle Tips for Injection Machines

Barrelize nozzle tip is universal design for easy installation.

*Material: High quality 38CrMoAlA 42CrMo,SKD61
*Treatment: Nitriding,Electroplating
*Diameter : Can be customized
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality, Prevents mold coining caused by stringing, injection molding.
Request a Quote
  • Quality Raw Materials
  • Patent Certification
  • Advance R&D Craft
  • High Performance
  • E-co Friendly

Product Video

Video Player

Product Specification

What is the injection nozzle tip?

The injection nozzle is an important component of the injection molding machine. It provides a bridge between the end cap and the mold.

What is the function of the nozzle tip for the injection molding machine?

The function of the nozzle tip is to transfer the material to the mold, it helps to feed the material to the cavity of the mold

What treatment that Barrelize can operate for your injection nozzle tip?

Barrelize can operate several treatments in-house such as nitriding, and chrome plating. Among them, nitriding treatment is the most widely used one as it’s almost suitable for all general purpose applications.

What types of nozzle tip designs that Barrelize can provide?

Barrelize can customize 3 designs: general purpose, reverse taper, and free flow. Barrelize can optimize your design and size to improve the impact of mold filling and ability.
Different designs have their own advantages and disadvantages. For example, reverse taper design has a larger and wider diameter at the intersection to the mold sprue bushing so it will not freeze so quickly.


Call us now to talk to our team about your specific demand. Barrelize supplies you Nozzle tips in all designs, with all material specs to give you the suitable fit.

Product

Material Base

Treatment

Technical Parameter

Application

Nozzle

38CrMoAlA

Nitriding

Tempering hardness:HB260-280
Nitriding hardness:HV950
Nitride layer depth 0.4-0.6MM
Brittleness≤2

common material

Nozzle

42CrMo

ElectroPlating

Tempering hardness:HB250-280
electroplating thickness:0.02-0.03MM

Transparent material

Nozzle

SKD61

Vacuum quenching

Hardness :HRC50-55

 suitable for engineering plastics with 40% GF or less

Nozzle

SKD61

Vacuum quenching+ ElectroPlating

HRC50-55,
Electroplating thickness:0.02-0.03MM  Surface Hardness HV900

suitable for high viscosity, high temperature,
high pressure and other plastic materials

Nozzle

SKD61

Vacuum quenching

Vacuum hardening with SKD61

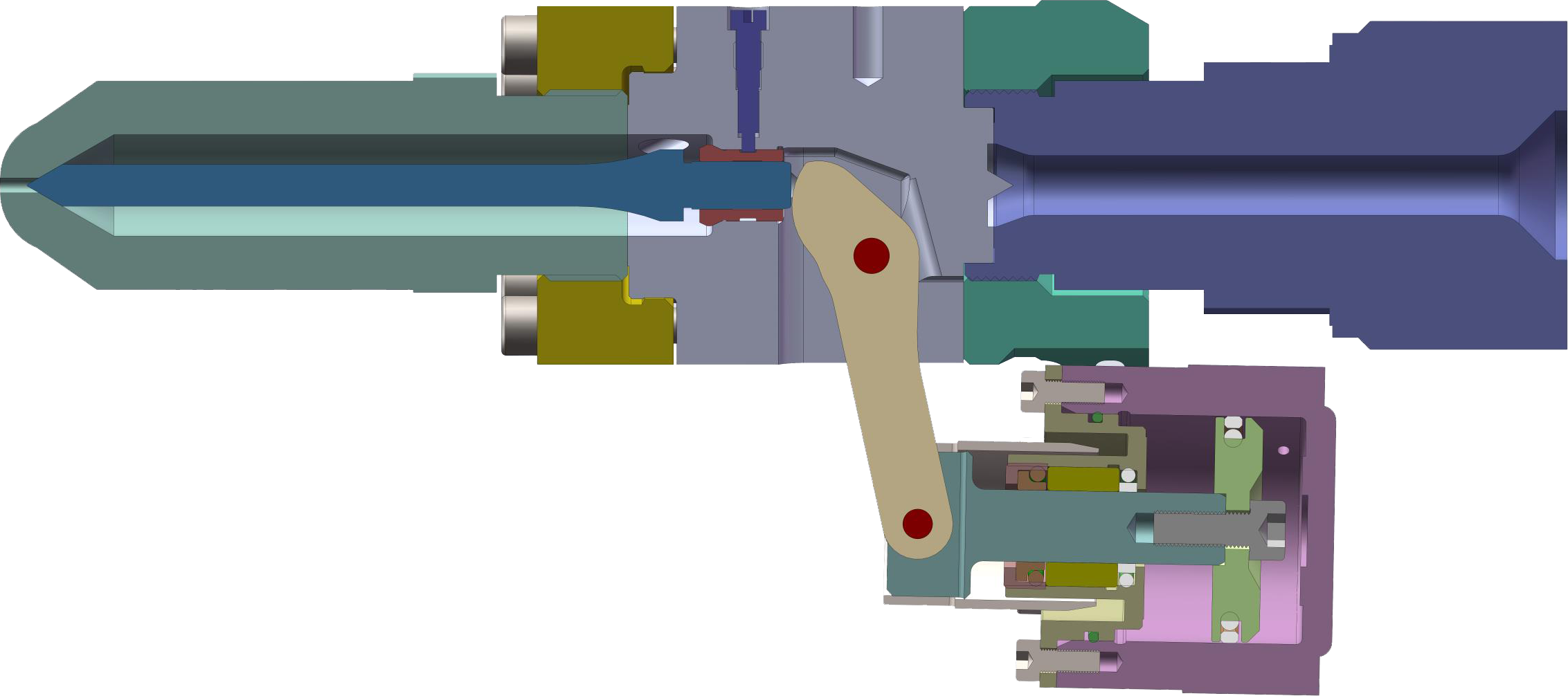

spring nozzle / hydraulic nozzle

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Nitrided Nozzle Tips for Injection Machines suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Nitrided Nozzle Tips for Injection Machines Service & Cooperative
