Bimetallic Extrusion Barrel Suppliers, Manufacturers, Factory

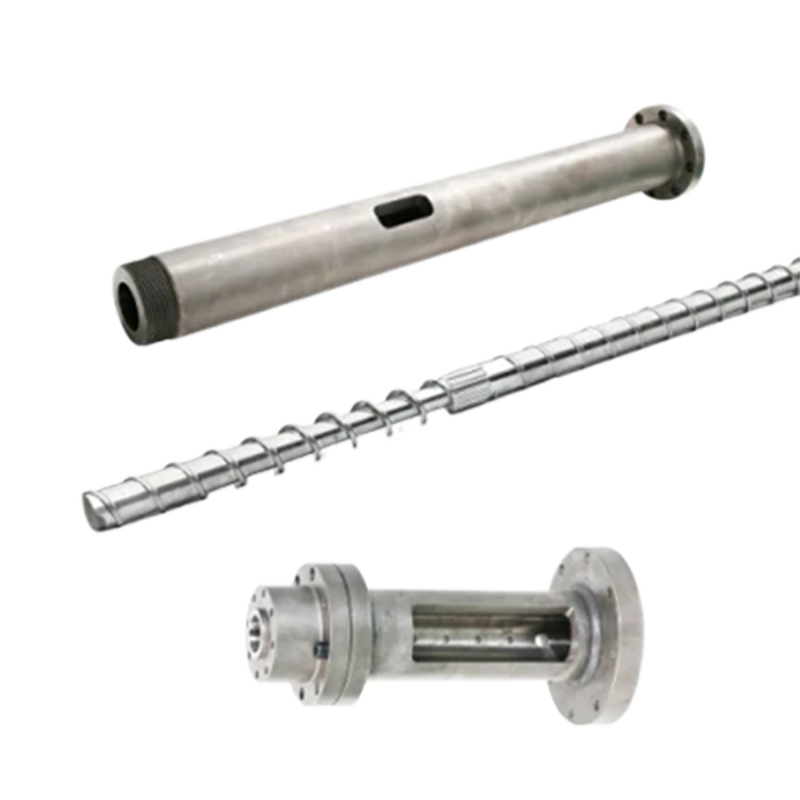

Bimetallic Extrusion Barrel

Barrelize Extrusion Barrel is are produced to the highest quality standards

*Material: High quality 38CrMoAlA 42CrMo

*Treatment: Nitriding,Bimetallic,Electroplating

*Diameter : Can be cusomtizedΦ20mm~ Φ300mm

*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect

*Benefit: Improved product quality,minimize wear,boost output

What are Bimetallic extrusion barrels ?

Barrelize Bimetallic extrusion barrels are made of two alloy metals. The first metal is the base material and the second metal is the coating material. So the bimetallic extrusion barrels have better corrosion and abrasion resistance, are more durable, and last longer than non-bimetallic ones.

How to make bimetallic extrusion barrels with two metals?

Barrelize use an advanced gas furnace to centrifugally cast the lining alloy on the inner surface of the barrel, which greatly provides high surfacing bonding strength, and improves the resistance of the bimetallic extrusion barrel.

What 's the specification of Barrelize Bimetallic extrusion barrel ?

For the first base material, you can choose 38CrMoALA and 42CrMo. For the second metal, Barrelize can offer you iron-based alloy, nickel-based alloy, tungsten carbide alloy. Barrelize can make the thickness of the bimetallic layer: 1.5-2mm. The hardness of an iron-based bimetallic extrusion barrel can reach HRC60.

The general features of using Barrelize bimetallic extrusion barrel:

1. High-performance backing

2. Bimetal construction

3. Bimetallic bore inlay

4. Inseparable inlay bond

The general advantage of Barrelize bimetallic extrusion barrel: corrosion resistance and wear resistance, improve the strength resistance to fatigue, finally improve the use time.

What is the application for Barrelize Bimetallic extrusion barrel?

Additive plastic materials with less than 30% glass fiber, nylon, PC, PPA, te, fire PC+ glass fiber, Nylon + glass fiber.

blow film extrusion machines, plastic sheet extrusion machines, wire &cable extrusion machine

Call us now to talk to our team about your specific demand. We have the expert here to listen to your demands and understand what you are looking for.

Product	Material Base	Treatment	Technical Parameter	Application
Barrel	38CrMoAlA	Nitriding	tempering hardness :HB260-280 nitriding hardness: HV950 nitride layer depth :0.4-0.6MM, brittleness:≤ 2	Commonly used for acid-free plastics with GF less than 10%, such as PP\PS＼AS\ABS\TPU\TPE
Barrel	38CrMoAlA	Bimetallic Fe-based alloy	Alloy thickness: 1.5-2MM Surface hardness:HRC60-65	Commonly used for adding acid plastic with GF less than 30%,PC/PA
Barrel	38CrMoAlA	Bimetallic Ni-based alloy+15% tungsten carbide powder	Alloy thickness: l.5-2MM, Surface hardness HRC52~55	Commonly used for adding acid plastic with GF less than 35%, PA/LCP/PBT
Barrel	38CrMoAlA	Bimetallic Ni-based alloy+25% tungsten carbide powder	Alloy thickness: l.5-2MM Surface hardness: HRC58~62	generally used to add aci lastic PEEK/PPS/LCP/flame retardant

Sourcing Plasticizing Equipment Direct from Barrelize

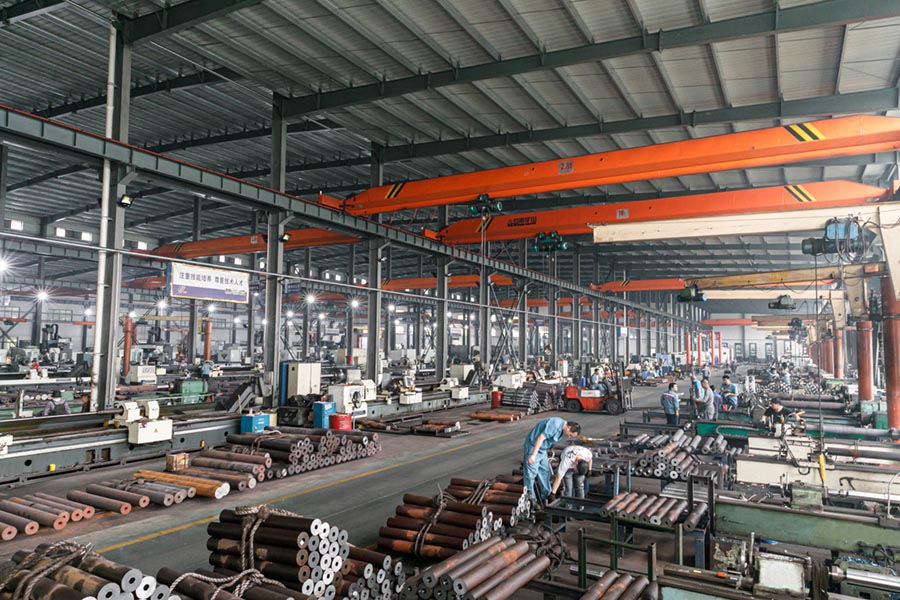

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Bimetallic Extrusion Barrel suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Bimetallic Extrusion Barrel Service & Cooperative
