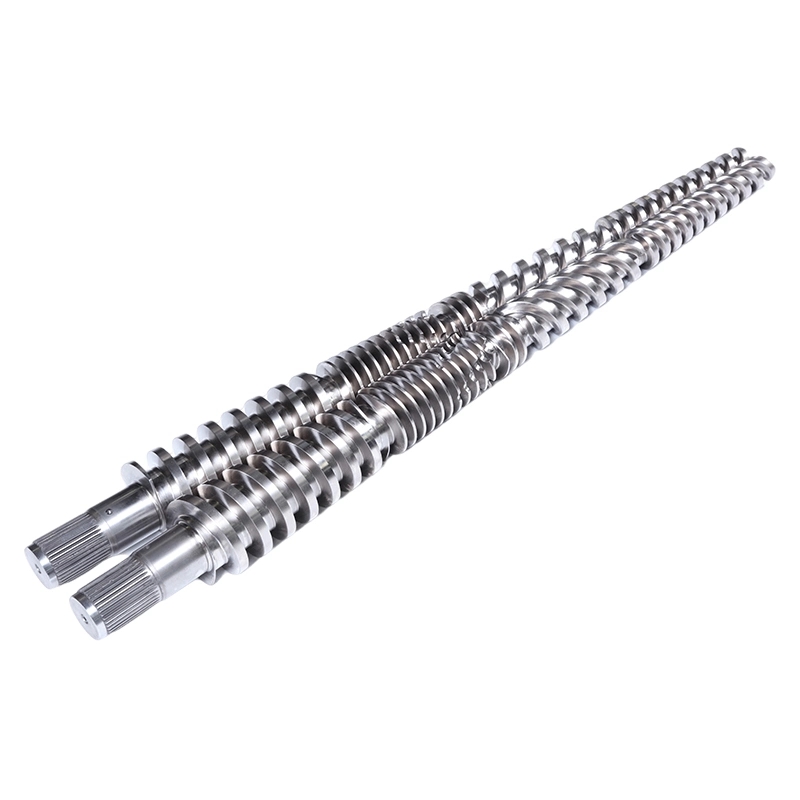

Nitrided Conical Twin Screw for Extrusion

Barrelize twin screws are designed with a detailed engineering and produced precisely with very tight tolerances.

*Material: High quality 38CrMoAlA 42CrMo

*Treatment: Nitriding,Bimetallic,Electroplating

*Diameter of Screw: Can be customized Φ15mm~ Φ300mm

*Screw Type: Vented type non-vented type, high-wear type,Barrier flight type, Mix type ect

*Suitable for: PP,PE,ABS,PVC,TPE ect

*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output

What is Nitrided Conical Twin Screw for Extrusion?

Nitriding is a heat treating process that diffuses nitrogen into the surface of the conical twin screw to create a case-hardened surface. It gives excellent corrosion resistance against humid air and water. It is a case hardening process.

How to make the Conical twin screw with nitriding treatment?

Barrelize has its own nitriding furnace in-house. The conical twin screw will be put into the nitriding furnace with nitrogen diffused on its surface under a certain temperature and humidity environment. Barrelize nitrided extrusion screw will be put into the furnace for 5 days and nights. After 5 days of deep nitriding, a nitrided layer with relatively high hardness is formed on the surface of the screw.

What's the specification of Barrelize Nitrided Conical Twin Screw for Extrusion?

The nitrided layer can reach 0.05-0.07mm. The hardness can reach HV950±50or above, equivalent to HRC68~69.

The general advantage of Nitrided Conical Twin Screw: it can improve corrosion resistance and wear resistance.

The main benefits of Nitrided Conical Twin Screw: improve plasticizing rate and increased production.

What is the application for Nitrided Conical Twin Screw ?.

blow film extrusion machines, plastic sheet extrusion machines, wire &cable extrusion machine.

Product	Material Base	Treatment	Technical Parameter	Application
Screw	38CrMoAlA	Nitriding	Tempering hardness: HB260-280 Nitriding hardness: HV950 Nitride layer depth: 0.4-0.6MM Brittleness:≤2.5 Surface finish Ra0.04	used for ordinary acid-free low particle size and does not contain GF. Such as ABS\PP\PS, etc.
Screw	38CrMoAlA	Bimetallic Ni-based alloy	Alloy thickness:≥1.5mm Hardness:HRC53~56 Brittleness:≤2.5 Surface finish Ra0.04	used for adding acid plastic with GF less than 30%
Screw	42CrMo	Bimetallic Ni-based alloy+ElectroPlating	Alloy thickness≥1.5mm ElectroPlating thickness : 0.03~0.0SMM Hardness: HRC52~55	transparent material/ color mixing material
Screw	Fully hard powder metallurgy steel	vacuum quenching process	Quenching hardness: HRC57-59, Electroplatable thickness: 0.03~0.05MM	suitable for engineering plastics with 35% GF or less, high-temperature materials.PA+ GF/ LCP+ GF/High Temperature PC
Screw	Full hard powder metallurgy steel	vacuum quenching process	Quenching hardness: HRC59~61 Thickness 0.005~0.01MM	suitable for engineering plastics with 45% GF or less

Sourcing Plasticizing Equipment Direct from Barrelize

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Nitrided Conical Twin Screw for Extrusion suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Nitrided Conical Twin Screw for Extrusion Service & Cooperative
