OEM Nitrided Flange End Cap

Home / Product / Front-end Components / End Cap / Nitrided Flange End Cap

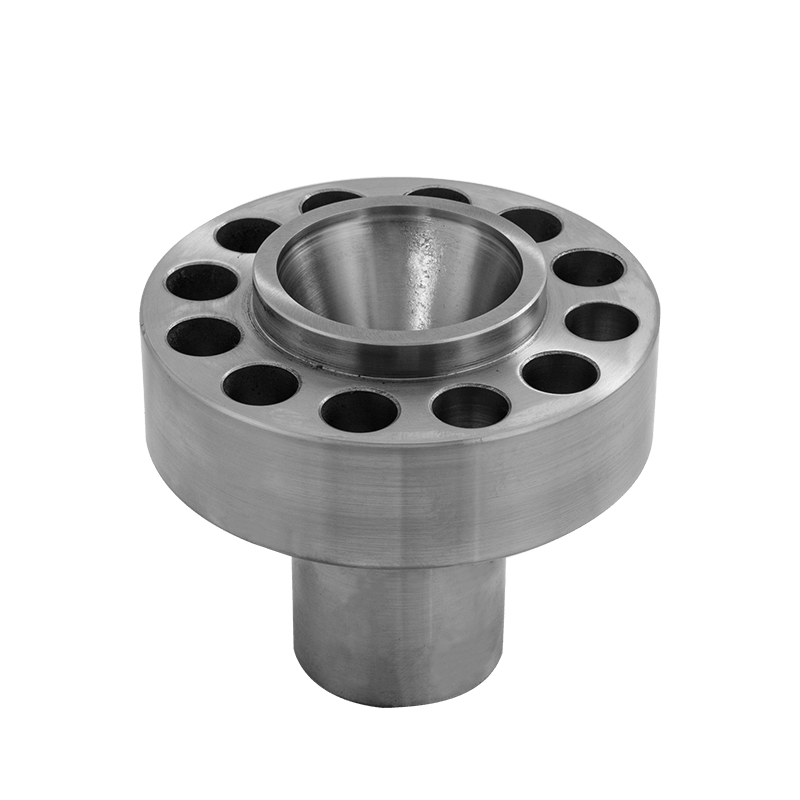

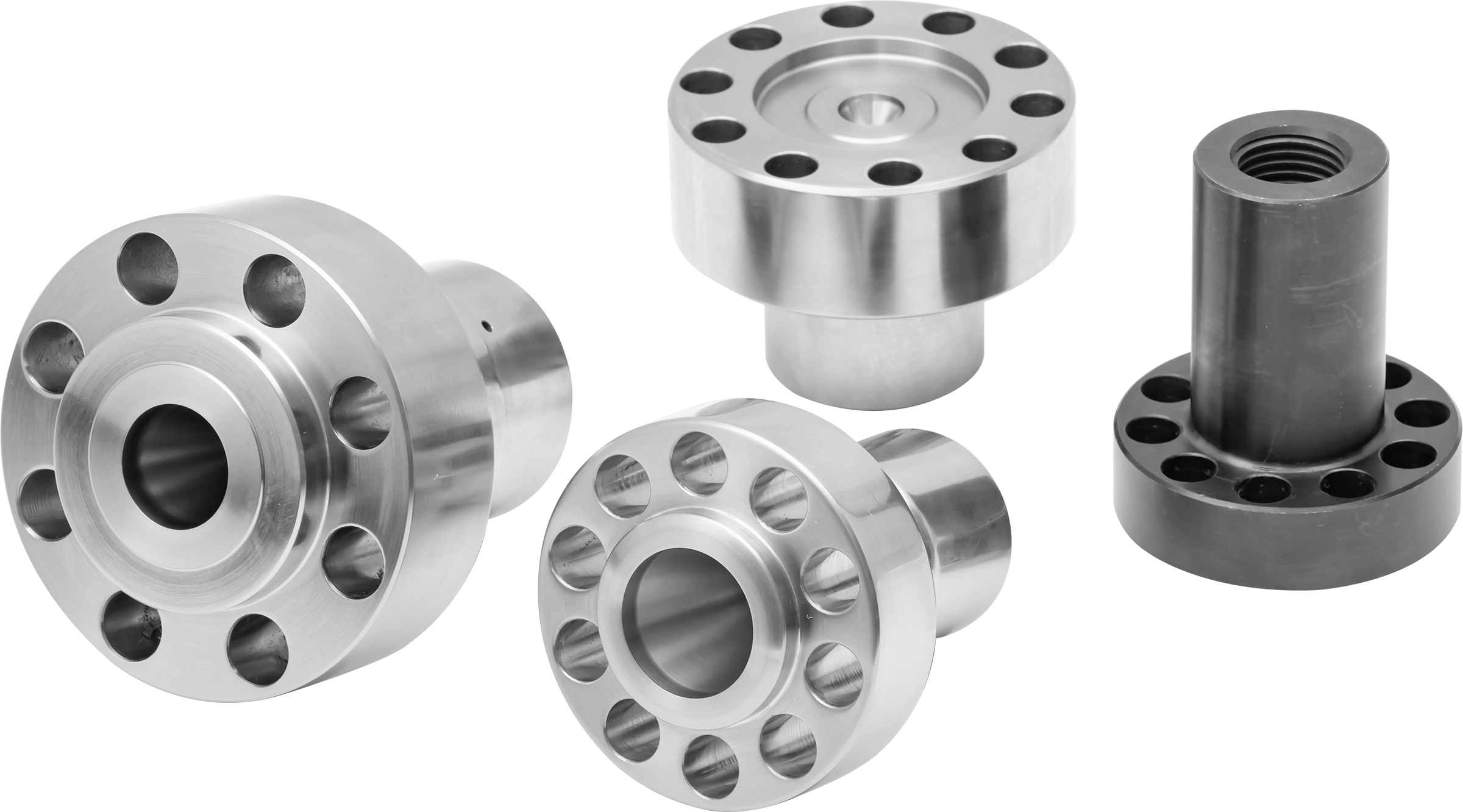

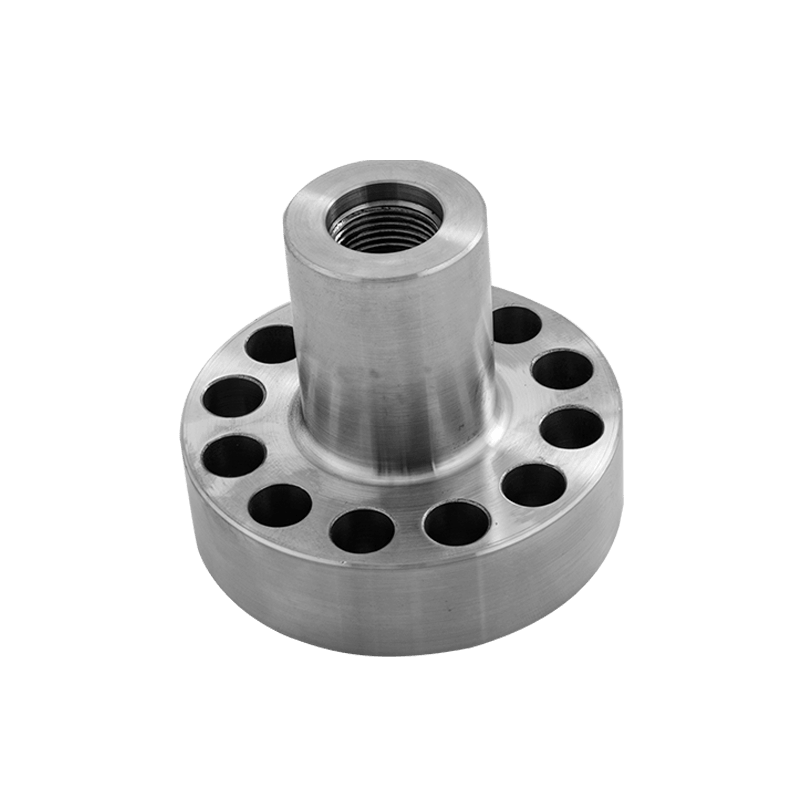

Nitrided Flange End Cap

Barrelize End Cap for injection molding equipment ensure consistent performance and quality

*Material: High quality 38CrMoAlA 42CrMo,SKD61
*Treatment: Nitriding,Electroplating
*Diameter : Can be cusomtized
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,Prevents mold coining caused by stringing, injection molding.
Request a Quote
  • Quality Raw Materials
  • Patent Certification
  • Advance R&D Craft
  • High Performance
  • E-co Friendly

Product Video

Video Player

Product Specification

What is the function of the end cap?
The end cap is a very important part of injection molding and extrusion machines. The main function is to deliver the plastic material to the mold and eliminate material degradation by working together with the nozzle and the barrel.
What are the main features of Barrelize end caps for injection molding and extrusion machines?
Barrelize can provide you end caps with a good combination of wear resistance, heat resistance, corrosion resistance, high polish finish, and Tapered & polished flow path.
What are the benefits of Barrelize end caps:
As a top manufacturer for end caps, Barrelize can improve the lifetime of your components, and overall machine efficiency and save on cost.
What material choices and design types of End caps that Barrelize can deliver to you?
Wide material choices :SKD61, 38CrMoAlA, 42CrMo
Process treatments: Inner bore Chrome plating, gas nitriding, quenching, inner bore coating
Design types: Pneumatic needle-type shut-off nozzle/hydraulic hybrid shut-off nozzle/static mixing nozzle
At Barrelize, we have the experts here to understand your demand. Our engineers and technicians can engineer, design, and manufacture the high-quality precision end caps for your injection molding and extrusion machines.

Product

Material Base

Treatment

Technical Parameter

Application

End Cap

38CrMoAlA

Nitriding

Tempering hardness:HB260-280
Nitriding hardness:HV950
Nitride layer depth:0.4-0.6MM
Brittleness≤2

common material

End Cap

42CrMo

ElectroPlating

Tempering hardness:HB250-280
electroplating thickness:0.02-0.03MM

Transparent material

End Cap

SKD61

Vacuum quenching

HRC50~55

suitable for engineering plastics with 40% GF or less

End Cap

SKD61

Vacuum quenching+ ElectroPlating

Hardness:HRC50~55
Electroplating thickness:0.02-0.03MM
Surface hardness HV900

suitable for high viscosity, high temperature,
high pressure and other plastic materials

Sourcing Plasticizing Equipment Direct from Barrelize

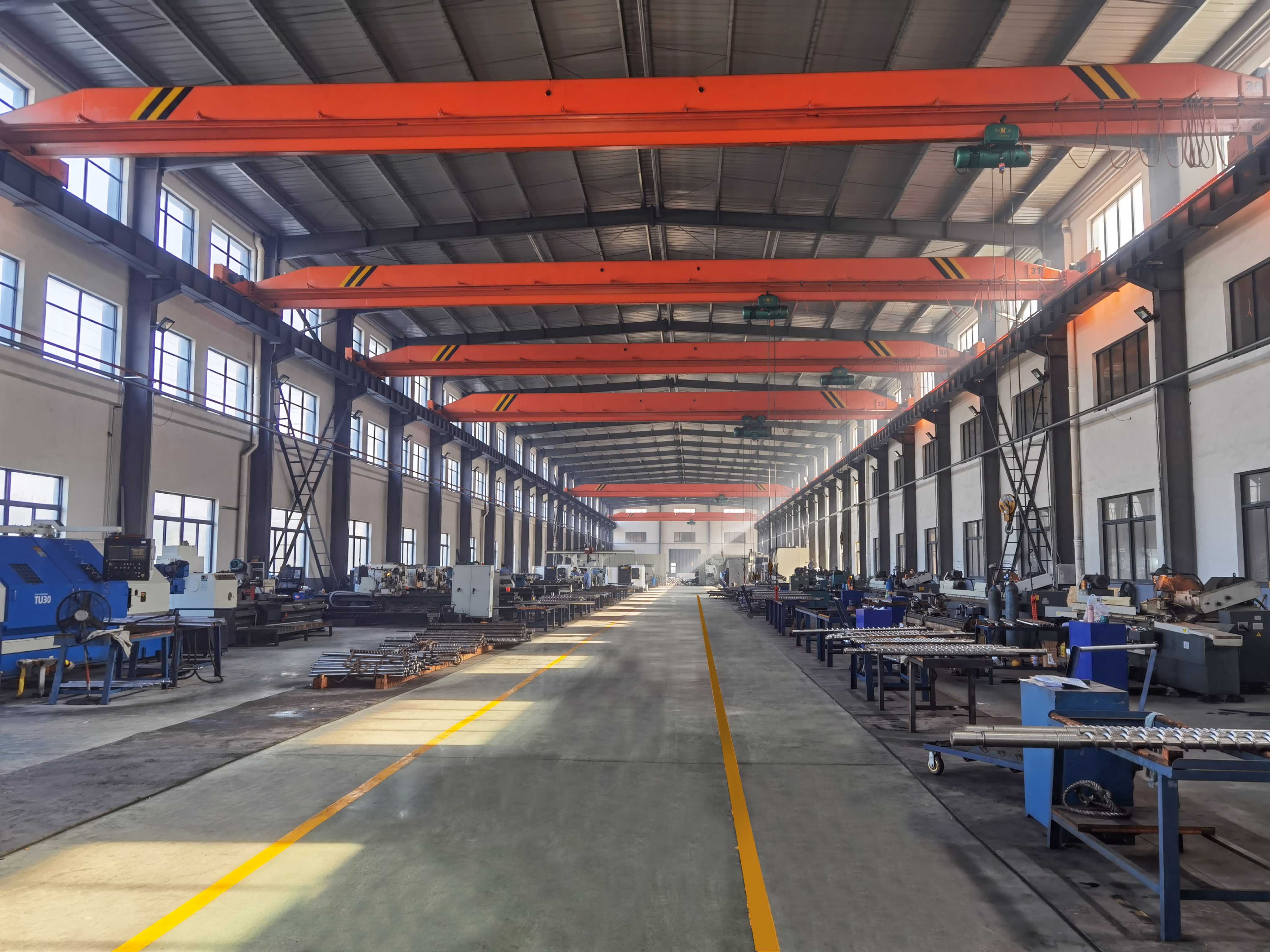

Maximize profits with innovative melt stream components that increase productivity, improve product quality, and prolong lifespan. We are Nitrided Flange End Cap suppliers, manufacturers. We have our advanced factory. Barrelize stands for pioneering technologies and high quality components and systems for the plastics processing industry in China. Large Stock of our raw material available from our factory. More than only producing screws and barrels for our customers, we remain at any time a problem solver for process improvement. ODM/OEM Nitrided Flange End Cap Service & Cooperative
